Abstract
Efficient and eco-friendly disinfection of air-borne human respiratory RNA viruses is pursued in both public environment and portable usage. The AlGaN-based deep ultraviolet (DUV) light-emission diode (LED) has high practical potentials because of its advantages of variable wavelength, rapid sterilization, environmental protection, and miniaturization. Therefore, whether the emission wavelength has effects on the disinfection as well as whether the device is feasible to sterilize various respiratory RNA viruses under portable conditions is crucial. Here, we fabricate AlGaN-based DUV LEDs with different wavelength on high-temperature-annealed (HTA) AlN/Sapphire templates and investigate the inactivation effects for several respiratory RNA viruses. The AlN/AlGaN superlattices are employed between the template and upper n-AlGaN to release the strong compressive stress (SCS), improving the crystal quality and interface roughness. DUV LEDs with the wavelength of 256, 265, and 278 nm, corresponding to the light output power of 6.8, 9.6, and 12.5 mW, are realized, among which the 256 nm-LED shows the most potent inactivation effect in human respiratory RNA viruses, including SARS-CoV-2, influenza A virus (IAV), and human parainfluenza virus (HPIV), at a similar light power density (LPD) of ~0.8 mW/cm2 for 10 s. These results will contribute to the advanced DUV LED application of disinfecting viruses with high potency and broad spectrum in a portable and eco-friendly use.
Keywords
-
Introduction
DUV light irradiation is an effective virus inactivation method through damaging viral genomes15-18. Mercury lamps are conventionally used in virus disinfection but suffer the disadvantages of toxicity, fragility, bulkiness, short lifetime, and ozone production. Moreover, according to the Minamata Convention on Mercury, the manufacture, import, and export of a myriad of products containing mercury have been prohibited since 202019-22. Hence, an eco-friendly and efficient germicidal candidate is now eagerly demanded. A DUV LED based on AlGaN, whose wavelength is tunable from 365 to 210 nm, is a perfect alternative to mercury lamps to sterilize due to its merits of pollution-free, small-size, energy-conservation and so on23-26. A lot of investigations have demonstrated the AlGaN-based DUV LEDs can effectively inactive bacteria such as Escherichia coli, Staphylococcus aureus, Candida albicans, etc. and different bacteria have different sensitivity to different wavelength20, 27-32. It is found the wavelength below 260 nm exhibit better inactivation effect on bacteria. However, studies for the disinfection effects on SARS-CoV-2 and IAV by AlGaN-based LED usually focus on the wavelength from 265 to 365 nm, with an integrated light source mode and a low virus concentration16, 33-38. The inactivation effects of more portable and even shorter wavelength AlGaN-based DUV LED on SARS-CoV-2 and IAV must be more precisely estimated.
Human respiratory RNA viruses, such as SARS-CoV-2 and IAV, spread rapidly in the human population by airway transmission and caused substantial morbidity, mortality, economic losses, and pandemic diseases worldwide1. COVID-19 has caused more than 636 million confirmed infection cases and 6.6 million deaths globally till Dec. 20222. During the COVID-19 pandemic, an additional 3311831 samples of respiratory viruses were collected during inpatient and outpatient surveillance, of which 19% (614,907) were positive for IAV from late 2019 to 2020, according to the WHO report3. IAV and SARS-CoV-2 are both air-borne transmitted viruses that efficiently spread through large air-flowing respiratory droplets and aerosols4. Aerosolized droplets can fall onto the nearest surface or form aerosols that can persist for up to 30 hours in air5-7. Surface contact could also transmit IAV and SARS-CoV-28-9. Studies have shown that IAV and SARS-CoV-2 can survive for 1–2 and 2–3 days on hard, nonporous surfaces such as stainless steel and plastic, respectively10-11. Although both consist of RNA, the genome of SARS-CoV-2 and IAV, two typical human respiratory viruses that populations are susceptible to, has its unique characteristics12-14. Hence, more efficient and broad-spectrum disinfection method should be developed for surface and environmental disinfection to reduce the risk of human respiratory RNA virus transmission.
In this work, we fabricate AlGaN-based DUV LEDs with different peak wavelength of 256, 265, and 278 nm on SCS HTA AlN/Sapphire templates and investigate their inactivation effects on human respiratory RNA viruses. Directly growing an AlGaN epilayer on a HTA AlN/Sapphire template will induce a high density of dislocations and a rough interface and surface, resulting in nonluminescence of the upper LEDs. To relax the SCS, the AlN/AlGaN superlattices (SLs) are inserted between the template and upper AlGaN epilayer. The dislocations and rough surfaces are suppressed, based on which DUV LEDs are fabricated. Furthermore, we find that the 256 nm-LED shows the highest inactivation effect against SARS-CoV-2 (>2.3×104 PFUs, 100% of the initial titer), IAV (>3.8×106 PFUs, 99.99% of the initial titer), and HPIV (>1.1×105 TCID50, 100% of the initial titer) within 10 s at a distance of 4 cm (~0.8 mW/cm2). Meanwhile, the 256 nm-LED can disinfect viruses on smooth and rough surfaces and destroy all three types of viral genes. The results provide an effective method to alleviate the adverse impacts of the SCS of the HTA AlN/Sapphire template on the upper epilayer, thus offering advanced inactivation effects against these respiratory viruses.
AlGaN-based DUV LEDs are usually heteroepitaxially grown on AlN/Sapphire template since AlN single-crystal substrates are too expensive. High-quality AlN/Sapphire templates are obtained in the last two decades through two-step growth, interlayer, NH3 pulse-flow, mobility enhanced epitaxy, epitaxial lateral overgrowth, and HTA39-43. Among these methods, the HTA method may be the most promising for industrial application due to its simplicity, high efficiency, and stability44-45. However, the HTA AlN/Sapphire template usually exhibits SCS, which significantly affect the upper AlGaN quality46-47. On the one hand, the SCS can induce the Stranski-Krastanov (S-K) growth mode and result in 3D islands, leading to a high density of threading dislocations and rough surfaces48-49. On the other hand, the SCS will cause a pulling effect, leading to composition nonuniformity and low p-doping efficiency. Furthermore, the SCS will very likely deteriorate the device during fabrication processes50. Hence, relaxation of the SCS during epitaxy on the HTA AlN/Sapphire template is necessary.
Experimental details
HTA AlN/Sapphire template fabrication and n-AlGaN epilayer growth
First, 200 nm AlN films are sputtered on c-Sapphire substrates at 650 °C in a N2 atmosphere with a chamber pressure of 4 mTorr (1 Torr = 133.322 Pa). Then, the sputtered templates are annealed at 1750 °C for 1 hour using a face-to-face geometry in a N2 atmosphere. n-AlGaN epilayers are grown on the HTA templates by 9×2" showerhead metal-organic chemical vapor deposition (MOCVD). TMGa, TMAl and NH3 are used as the Ga, Al and N precursors, respectively, and SiH4 is used as the n-type doping source. The HTA templates are first thermally cleaned in a H2 and NH3 mixed gas atmosphere at 850 °C to remove surface contamination. Then, the temperature is ramped up to 1150 °C to grow an n-AlGaN epilayer at 50 mbar. The total n-AlGaN thickness is ~1.2 µm, and the target Al content is approximately 55%. To release the SCS of the n-AlGaN epilayer, SLs are inserted between the template and the upper n-AlGaN epilayer. After removing surface contamination and ramping up the temperature, an AlN barrier layer and an AlGaN well layer with an Al content of 80% are successively grown for 60 and 30 s, respectively, and the process is repeated 14 times. Last, an AlN barrier cap layer is grown. The growth temperature of the SLs is the same as that of the n-AlGaN epilayer. The total thickness of the SLs is approximately 170 nm.
Device growth and fabrication
DUV LED wafers are grown based on the n-AlGaN epilayer with and without SLs. Additionally, TMGa, TMAl and NH3 are used as the Ga, Al and N precursors, respectively, and SiH4 is used as the n-type doping source. In addition, Cp2Mg is used as the p-type doping source. On the n-AlGaN layer, a Si-doped AlGaN electron acceleration layer (EDL) of approximately 50 nm is grown. Then, AlGaN multiple quantum wells (MQWs) and a Mg-doped AlGaN SL electron blocking layer (EBL) are grown. Next, a 100 nm p-AlGaN layer is grown above the EBL as the hole injection layer (HIL) using the quantum engineering p-doping method51. Lastly, a p-GaN cap layer of approximately 20 nm is grown on the p-AlGaN HIL to form a better p-type ohmic contact. By controlling the flow ratio of the Al and Ga sources during growth, the Al content of each layer can be tuned, thus modulating the emission wavelength of the wafers. After epitaxial growth, ex situ annealing at 900 °C in a N2 atmosphere for 10 min is implemented on the as-grown wafers to further remove H atoms combined with Mg atoms. Then, standard DUV LED fabrication processes, including mask layer deposition by plasma-enhanced chemical vapor deposition (PECVD), standard photolithography, mask layer etching by reactive ion etching (RIE), mesa etching by inductively coupled plasma (ICP) etching, electrode deposition and activation by electron beam evaporation, thermal evaporation, sputtering and fast thermal annealing, are used to fabricate 10×20 mil2 LED chips. Finally, flip-chip packaging technology is adopted for the chips to realize LED devices.
Material and device characterizations
Transmission electron microscopy-ready (TEM) samples are prepared using the in situ focused ion beam (FIB) lift out technique on an FEI Dual Beam FIB/SEM. The samples are capped with sputtered C and e-Pt/I-Pt prior to milling. The TEM lamella is approximately 100 nm. The samples are imaged by an FEI Tecnai TF-20 FEG/TEM at 200 kV in bright-field (BF) scanning transmission electron microscopy (STEM) mode and high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) mode. The STEM probe size is 1–2 nm in nominal diameter. Energy dispersive spectroscopy (EDS) mappings are acquired on an Oxford INCA Bruker Quantax EDS system. Atomic force microscopy (AFM) images are obtained with Bruker Multimode 8 equipment. X-ray diffraction (XRD) reciprocal space mappings (RSM) measurements are performed on Bruker D8 Discover equipment using the Cu Kα1 radiation line with a wavelength of 0.15406 nm. Current-voltage (IV) curves of the DUV LEDs are measured by a PDA FS-Pro 380 semiconductor analyzer, and electroluminescence (EL) spectra are obtained by an Omni-λ 300i grating spectrometer with 1200 lines/mm. The wavelength step is fixed at 0.1 nm. The light-output-power (LOP) curves are measured by an AIS-2 LED integrating sphere equipped with a HAAS-2000 UV spectral radiometer and an LED300E power supply in continuous wave mode. The light-power-density (LPD) of the devices is measured by a Linshang LS125 UV light meter equipped with a UVCLED-X0 probe in atmosphere.
Cells and viruses
MDCK and Vero E6 cells are obtained from ATCC. The BHK21-hACE2 cell line is provided by Professor Huan Yan, Wuhan University. All cells are maintained in Dulbecco’s modified Eagle’s medium (DMEM; Gibco) supplemented with 10% fetal bovine serum (FBS) and incubated at 37 °C in 5% CO2. The A/WSN/33 virus is generated by reverse genetics as previously described52. Human parainfluenza virus (HPIV3) is obtained from Professor MingZhou Chen, Wuhan University. The SARS-CoV-2 live virus (strain IVCAS 6.7512) is provided by the National Virus Resource, Wuhan Institute of Virology, Chinese Academy of Sciences.
Pseudovirus production
The DNA sequences of human codon-optimized S proteins from SARS-COV-2 variants (Alpha, GISAID: EPI-ISL-601443; Beta, GISAID: EPI_ISL_678597; Delta, GISAID: EPI_ISL_2029113; Omicron, GISAID: EPI_ISL_7162071) are cloned into the pCAGGS vector with C-terminal 18 aa truncation (SARS-CoV-2-S-Δ18). Pseudotyped VSV-ΔG viruses expressing a luciferase reporter are provided by Professor Ningshao Xia, Xiamen University. Pseudotyped SARS-CoV-2 virus particles are produced as previously described53. Briefly, Vero E6 cells are seeded in 10 cm-dishes and simultaneously transfected with 15 μg of SARS-CoV-2-S-Δ18 plasmid using Lipofectamine 2000 (ThermoFisher). Forty-eight hours post-transfection, 500 µL of VSV-ΔG virus is used to infect Vero E6 cells. Cell supernatants containing pSARS-CoV-2 virus with a VSV backbone are collected after another 24 h, cleared of cell debris by centrifugation at 3000 rpm for 6 minutes, aliquoted, and stored at –80 °C.
Device irradiation and viral titer detection
To titrate IAV, plaque assay is applied by immunostaining as previously described55. Briefly, MDCK cells (5.0×104 cells) are seeded on a 48-well plate one day before. Cells are then infected with tenfold serial dilutions of viruses in PBS (102 to 107 times dilution). After incubation at 37 °C for 1 h, Avicel medium (2.4% Avicel (FMC Corporation) mixed with 2× DMEM) is added to each well. After two days, the overlay medium is moved and cells are then fixed with 4% formaldehyde and permeabilized with 0.3% Triton X-100. Immuno-staining is performed using an anti-NP polyclonal antibody conjugated to HRP (Hangzhou HKIG Biotech Co. Ltd). Individual infected plaque is visible by True Blue substrate (KPL).
For irradiation experiments, 60 μL of a virus suspension (1–2 mm depth) is placed in a defined well of a 24-well plate or on the surface of stainless steel, glass, plastic, cystosepiment, or paper, and the virus suspension is exposed to the designated device. Considering the low transmittance of UVC light in the culture medium, we dilute the virus suspension in PBS before irradiation54. After irradiation, each virus inoculum is tenfold serially diluted and subjected to the plaque assay or the 50% tissue culture infectious dose (TCID50) assay for the live viral titer test.
For HPIV3 titer detection, the 50% tissue culture infectious dose (TCID50) is applied by observing membrane fusion as previously described56. Vero E6 cells (2.0×104 cells) are seeded on a 96-well plate and cultured overnight. Cells are infected with tenfold serial dilutions of an HPIV virus stock in PBS and incubated at 37 °C for 5–7 days. The viral titers are determined by direct examination for membrane fusion (resulting from an individual fused cell joining a syncytium) and the TCID50 is calculated with the Spearman-Karber method.
For SARS-CoV-2 titer detection, plaque assay is applied by crystal violet staining. Vero E6 cells (1.0×105 cells) are seeded on a 24-well plate and cultured overnight. Cells are infected with tenfold serial dilutions of a SARS-CoV-2 virus stock in DMEM and incubated at 37 °C for 1 h. Inocula are replaced with Aquacide II (Calibiochem, CAS 9004-32-4) containing DMEM and 5% FBS. After 3 days, the overlay medium is moved and cells are fixed with 4% formaldehyde. Individual infected plaque is visible by crystal violet staining.
To detect the infectivity of SARS-CoV-2 variant, different SARS-CoV-2 pseudotyped virus (pSARS-CoV-2) were generated previously53, wherein the outside membrane protein is SARS-CoV-2 spike proteins, the inter viral genome is VSV-based virion taking luciferase (luc) gene. The expression of luc could therefore reflect the successfully infection of pSARS-CoV-2 to targeted cells. To examine the infectivity of different variants after UVC irradiation, BHK21-hACE2 cells are seeded into 96-well culture plates to form monolayer and then are subjected to tenfold serially diluted pSARS-CoV-2 for 24 h. Then, the supernatant is sucked out, and the cells are washed with cold PBS, followed by lysis in 30 μL of cell lysis buffer (Promega, E1941). The pSARS-CoV-2 infectivity is measured by detecting the luciferase activity using commercially kit with the luciferase substrate (Promega, E4550) via a Varioskan LUX Multimode Microplate Reader (ThermoFisher, VLBLATGD2).
Real-time reverse-transcriptase-polymerase chain reaction
Real-time reverse-transcriptase–polymerase chain reaction (qPCR) is used to quantify the vRNA, cRNA, and mRNA levels of influenza genes. Purified RNA extracted with TRIzol (Invitrogen™, 15596018) is reverse transcribed using Oligo dT or specific primers (vRNA-NP: AGCAAAAGCAGGGTAGATAATCACTC, cRNA-NP: AGTAGAAACAAGGGTATTTTTCTTT, mRNA-NP: TTTTTTTTTTTTTTTTCTTTAATTGTC or uni12: AGCAAAAGCAGG) (using the TAKARA CAT# RR037A kit). In brief, 6 μL of the RNA standard is mixed with 1.5 μL of 10 μM primer, incubated at 65 °C for 5 min and then cooled at 4 °C. The corresponding cDNA is quantified using Hieff qPCR SYBR Green Master Mix (Yeason). Thermal circulation is carried out in a 96-well reaction plate (ThermoFisher, 4343814).
Statistical analysis
Statistical analysis of biological experiments is performed using GraphPad 8.0. Student’s unpaired t test is used for two-group comparisons. According to the analysis conducted, *p value < 0.05, **p value < 0.01, ***p value < 0.001 and ****p value < 0.0001 are considered significant. Unless otherwise noted, error bars indicate the mean values and standard deviations of three biological experiments.
Results and discussion
AlGaN epilayer compressive stress relaxation on HTA AlN/Sapphire templates
A HAADF STEM image of the AlN/AlGaN SL area and the corresponding EDS mappings of N, Al, and Ga elements are obtained to analyze the strain relaxation. The SLs contain 14 cycles of AlN/AlGaN (6 nm / 6 nm) and a final AlN cap layer with a total thickness of ~170 nm (Fig. 2(e)). In the initial growth stage of the SLs, namely, growth of the first AlN/AlGaN structure, very uneven and ambiguous interfaces are observed, which is strong evidence for the 3D growth mode at the beginning of SL growth. Meanwhile, within the first 6 cycles, a clear contrast change from bright to dark can be observed in the wells, indicating the strong compositional pulling effect62-63. The EDS mappings confirm the compositional variations in the wells (Fig. 2(f–h)). Besides, as SL growing, the interfaces become increasingly clear, and the compositional variations in the wells become increasingly obscure. Within the last 8 cycles, sharp interfaces and homogeneous composition wells are formed. Through the periodic growth mode variation from 3D to 2D and the compositional pulling effect during the first several cycles, the SCS can be deduced to be released.
To relax the SCS, the AlN/AlGaN SLs are employed between the template and the upper n-AlGaN layer. With the SLs, both screw and edge dislocations are suppressed compared to the wafer without the SLs (Fig. 1(c, d)), being reduced by two orders of magnitude to about 4.0×108 cm−2. More importantly, with the SLs, few new dislocations are generated at the interfaces between the SLs and template as well as between the upper n-AlGaN and SLs, indicating that the SLs can maintain the high-quality advantage of the template in the upper n-AlGaN epilayer, benefiting device structure growth. In addition, with the SLs, the dislocations penetrating to the upper n-AlGaN do not vertically propagate as they do without SLs. They tend to obliquely propagate (Fig. 1(d)), which is beneficial to dislocation merging. Additionally, with the SLs, the surface of the upper n-AlGaN becomes very flat (Fig. 1(c, d)) compared to the wafer without SLs (Fig. 1(a, b)).

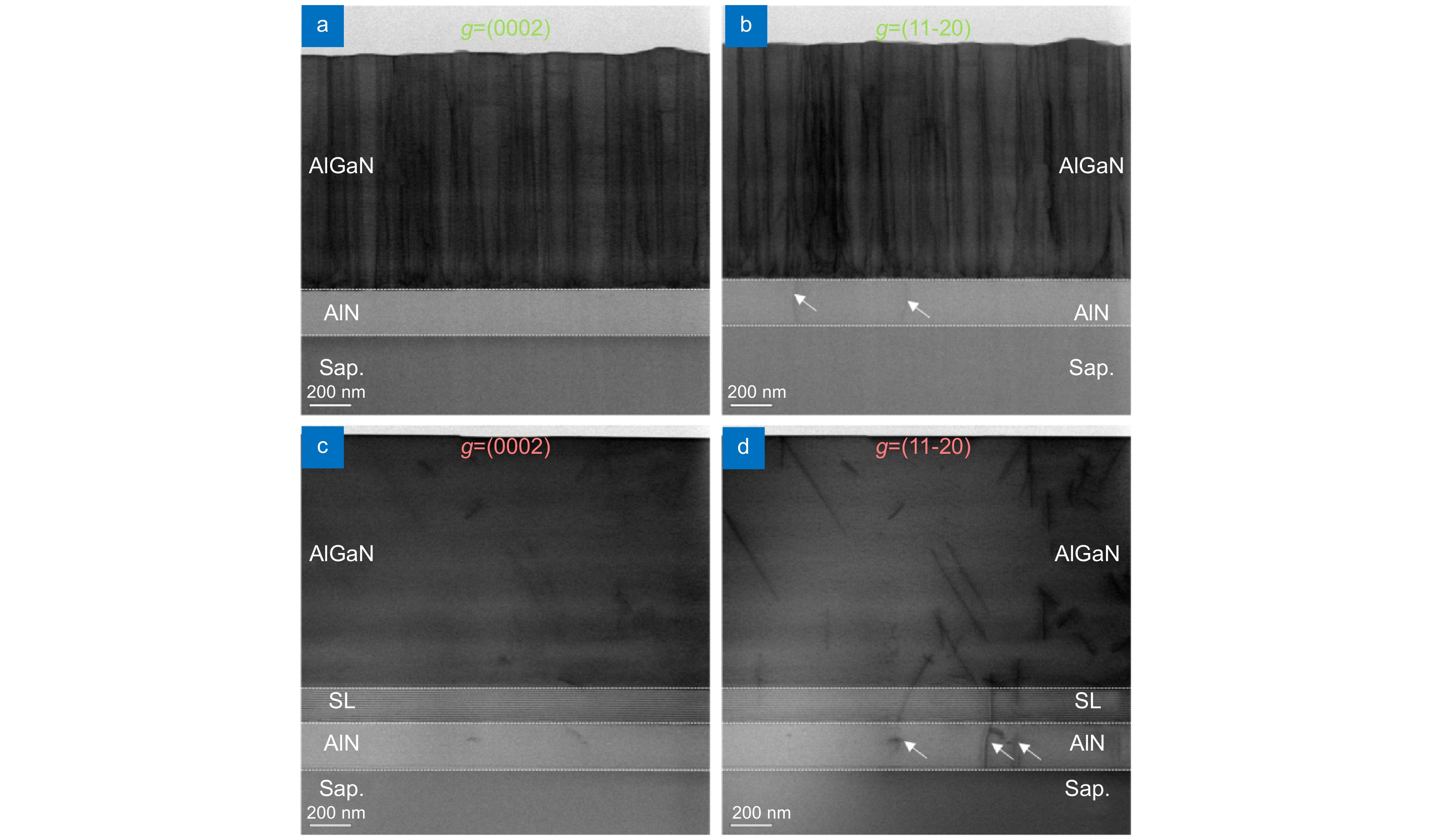

Cross-sectional BFDB STEM images (<1-100>) of the n-AlGaN epilayer grown on a HTA AlN/Sapphire template. (a, b) and (c, d) are the images without and with SLs, respectively. (a, c) and (b, d) are taken with g = (0002) and (11-20), respectively. For one sample, the images with different g vectors are taken in the same area. The white arrows in (b) and (d) denote the edge dislocations in the HTA AlN/Sapphire template.
Although high-quality AlN/Sapphire templates through HTA is obtained (Fig. S1), the residual SCS in the template (Fig. S2) will cause difficulties in the upper AlGaN growth. n-AlGaN is grown on a HTA AlN/Sapphire template by MOCVD to investigate the impacts of SCS on the upper AlGaN epilayer. Bright-field dual beam (BFDB) STEM images with different g vectors are obtained in the same area to observe different types of dislocations. There are almost no screw dislocations in the AlN/Sapphire template. Many screw dislocations are generated at the interface between the AlN/Sapphire template and epilayer and propagate straight to the surface (Fig. 1(a)). The edge dislocation density is also low in the AlN/Sapphire template, but a similar increment process to that of screw dislocation occurs at the interface (Fig. 1(b)). The threading dislocation density of the upper n-AlGaN epilayer is estimated to be about 3.6×1010 cm−2. In the upper AlGaN near the interface, dislocation bending and merging can be observed, implying that the SCS in the template, which can result in a 3D growth mode, should be responsible for the dislocation increment. Furthermore, the BFDB STEM images (Fig. 1(a, b)) also illustrate the rough surface of the upper AlGaN, which can lead to rough interfaces of the upper MQWs, deteriorating device performance. The nonluminescence of the LEDs grown by this method demonstrates the significance of relaxing the SCS.

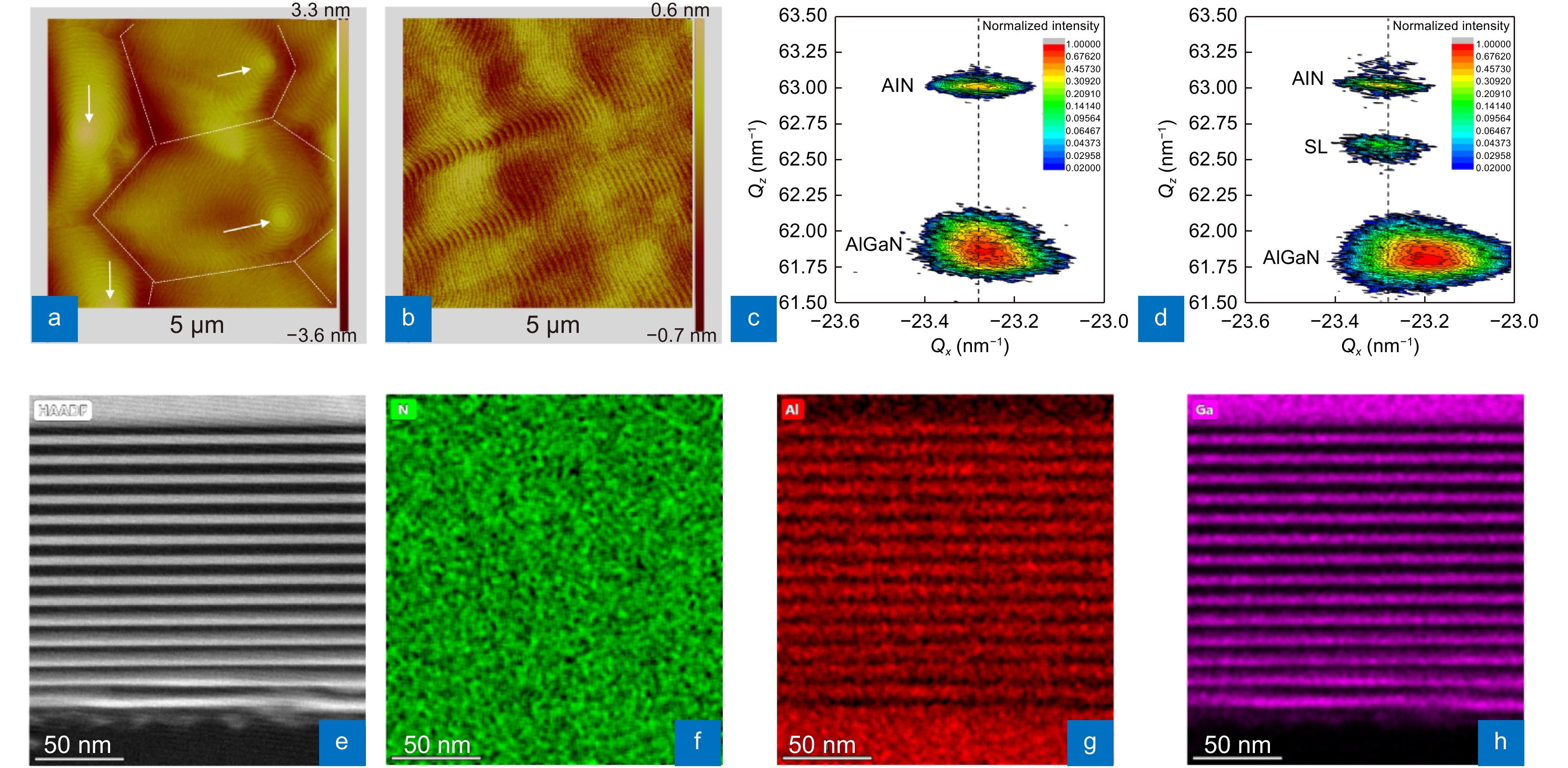

Surface and strain states of the n-AlGaN epilayer grown on a HTA AlN/Sapphire template and structure of the SLs. (a, b) and (c, d) are AFM images (5 μm × 5 μm) and XRD RSMs of the (–105) planes for wafers without/with SLs. (e–h) Cross-sectional HAADF STEM image (<11–20>) of an AlN/AlGaN SLs area and corresponding EDS mappings of N, Al, and Ga elements.
AFM measurements further confirm the n-AlGaN epilayer surface morphology with and without SLs. There is a high density of hillocks on the surface for the wafer without SLs, as marked by the white arrows (Fig. 2(a)), being related to screw- or mixed-type dislocations57-59. Between the hillocks, boundaries can be observed, resulted from the merging of 3D islands60-61, generating a high density of edge and mixed dislocations. In contrast, for the wafer with SLs, no hillocks are observed, and flat atomic steps are formed on the surface, implying few threading dislocations in the epilayer (Fig. 2(b)). The root mean square (RMS) value for the wafer with SLs of 0.170 nm (5 μm × 5 μm) is much smaller than that of 0.663 nm for the wafer without SLs. These results agree with the STEM images. XRD RSMs of the (–105) planes of the wafers are obtained to examine the strain states of the n-AlGaN epilayer. Without the SLs, the reciprocal lattice point (RLP) of n-AlGaN almost aligns with the fully strained line, indicating the SCS in the n-AlGaN (Fig. 2(c)). When the SLs are inserted, the RLP of the upper n-AlGaN deviates from the fully strained line, implying a relaxation ratio of ~60% and demonstrating the strain relaxation effect of the SLs (Fig. 2(d)).
DUV LED fabrication on HTA AlN/Sapphire templates
Based on the strain relaxation structure, DUV LEDs are grown by MOCVD. From bottom to top, the device structure contains an n-AlGaN electron transport layer (ETL), a Si-doped n-AlGaN EDL, AlGaN MQW active layers, a Mg-doped AlGaN SL-EBL, a p-AlGaN HIL, and a thin heavily doped p-GaN contact layer (Fig. 3(a)). The p-AlGaN HIL is grown by the quantum engineering of nonequilibrium p-doping method51. By designing the compositions in the quantum well and the other functional layers, DUV LED wafers with different peak wavelengths are grown. The wafer with a peak wavelength of 278 nm is taken as the typical sample for structure examinations. The XRD RSM of the (105) plane confirms that the compressive stress has been partially released (Fig. 3(b)). HAADF STEM images of the p-AlGaN HIL, MQWs, and EBL (areas 1, 2, and 3 in Fig. 3(a)) are obtained to estimate whether the final structure meets the design requirements. The periodically stacked structure of the p-AlGaN HIL indicates the existence of GaN quantum structures in an AlGaN matrix (Fig. 3(c)). There are 6 pairs of barriers and wells with thicknesses of 9 and 3 nm, and sharp interfaces are formed (Fig. 3(d)). An SL structure of 3 cycles is adopted in the EBL with barrier and well thicknesses of 6 nm (Fig. 3(e)). Furthermore, the HAADF image covering the whole DUV LED structure (area 4 in Fig. 3(a)) and the corresponding EDS mappings of Al and Ga confirm that all heterostructure interfaces are sufficiently abrupt and that the Al contents of each layer can meet the design requirements (Fig. 3(f–h)).
Standard device fabrication processes are used to prepare DUV LEDs with an area of 10×20 mil2, and the devices are flip-chip packaged (inset in Fig. 4(b)). The IV curves, EL spectra, LOP and distance-dependent LPD are measured. With wavelength shortening, the forward voltage rises due to the increase in Al content and decrease in n/p-doping efficiency (Fig. 4(a)). The full widths at half maximum (FWHMs) of the EL spectra for the 278 nm-, 265 nm- and 256 nm-LEDs at 100 mA are 11.6, 12.9, and 10.8 nm (inset in Fig. 4(a)), respectively. The EL spectra exhibit no obvious other parasitic peaks up to 360 nm (Figs. S3–S5), indicating the good carrier confinement effect of the MQWs and EBL. Additionally, since the shorter the wavelength is, the higher the Al content, the lower the n/p-doping efficiency, and the weaker the quantum confinement effects of the DUV LEDs, the LOP of the 278 nm-, 265 nm-, and 256 nm-LEDs at the same current naturally successively reduces, and the LOP increment with current also successively reduces (Fig. 4(b)). At the current of 100 mA, the LOPs of the 278 nm-, 265 nm-, and 256 nm-LEDs are 12.5, 9.6, and 6.8 mW, respectively. The peak external quantum efficiencies (EQE) for the 278 nm-, 265 nm-, and 256 nm-LEDs are about 3.0%, 2.2%, and 1.4%, respectively. These devices are soldered to Al submounts and integrated with a 60° lens to measure the distance-dependent LPD at the current of 100 mA (inset in Fig. 4(c)). With increasing irradiation distance, the LPD rapidly decays for all LEDs (Fig. 4(c)). However, interestingly, the decay rates of the 278 nm-, 265 nm-, and 256 nm-LEDs successively decrease. At a distance of 4 cm, the three LEDs have a similar LPD of ~0.8 mW/cm2 (inset in Fig. 4(c)). Hence, 4 cm is a good irradiation distance for investigation of the inactivation effects of different wavelength LEDs.

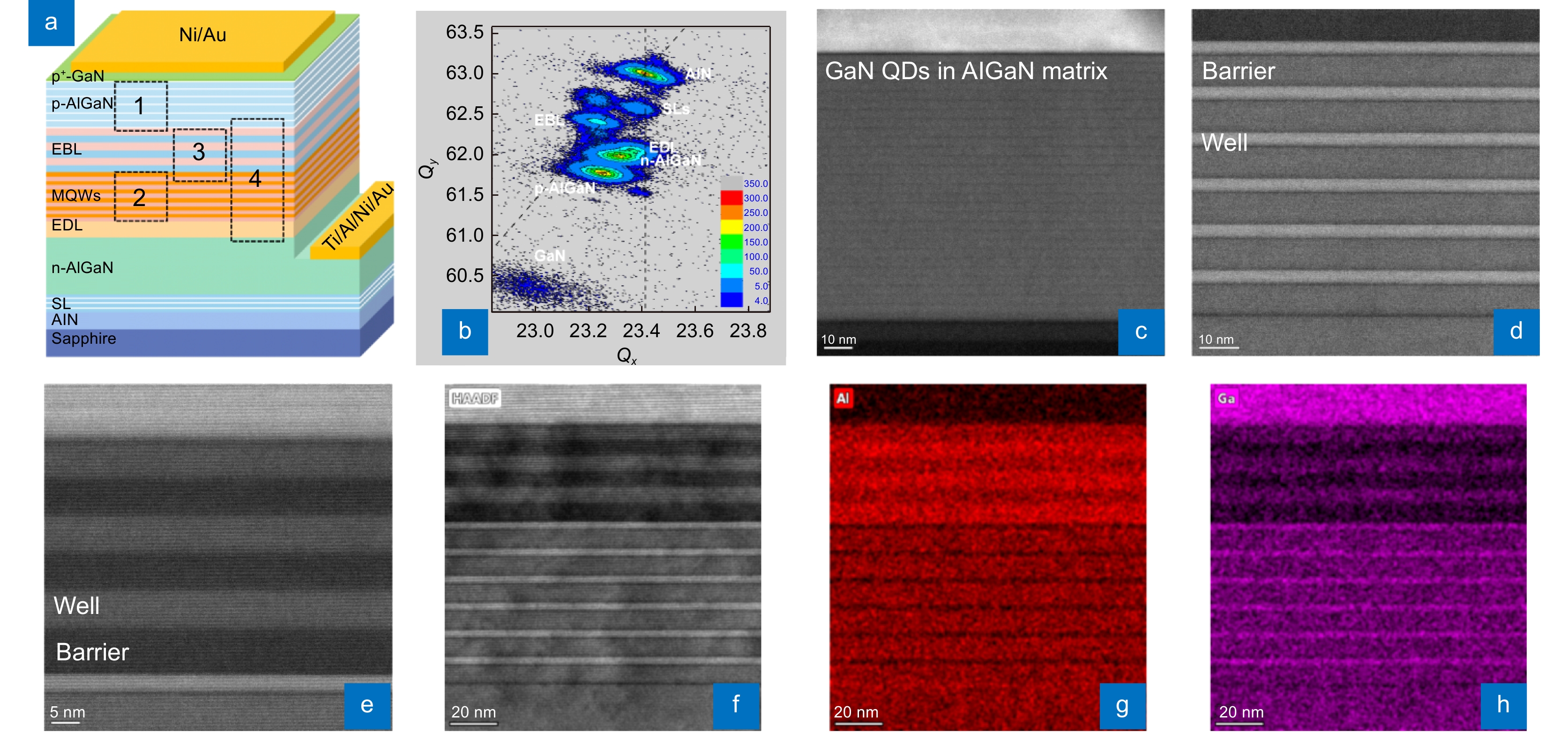

DUV LED structure grown on a HTA AlN/Sapphire template. (a) Structure diagram of the DUV LED. (b) XRD RSM of the (105) plane of the DUV LED wafer. (c–e) Cross-sectional HAADF STEM images (<11–20>) of the p-AlGaN HIL, MQWs, and EBL (areas 1, 2, and 3 in Fig. 3(a)) of the DUV LED, respectively. (f–h) HAADF STEM image (<11–20>) of the DUV LED (area 4 in Fig. 3(a)) and corresponding EDS mappings of Al and Ga.

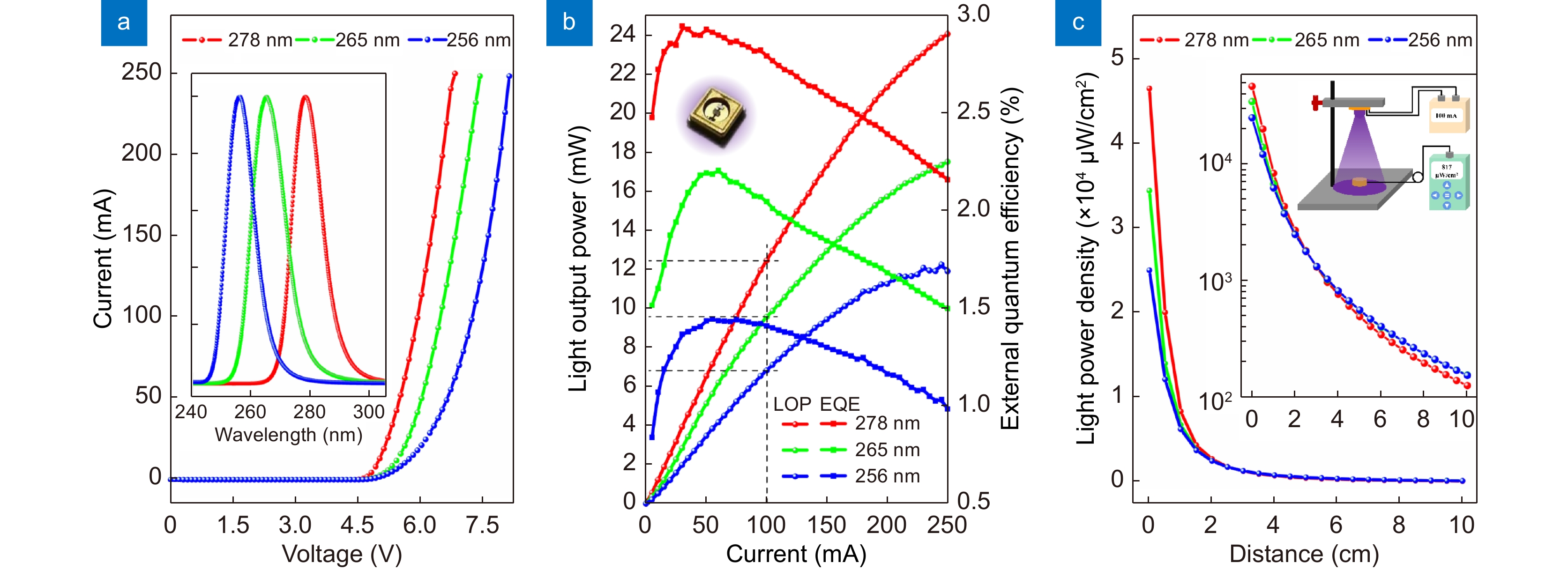

Performance characterizations of the three DUV LEDs. (a) IV curves. The inset shows the normalized EL spectra at the current of 100 mA. (b) LOP and EQE curves. The inset shows a picture of a typical flip-chip packaged LED. (c) Distance-dependent LPD at the current of 100 mA. The insets show the log-scale graph and measurement geometry.
Inactivation effects of DUV LEDs on human respiratory RNA viruses
For IAV, suspensions of the H1N1 subtype (strain A/WSN/1933) are irradiated at 4 cm (~0.8 mW/cm2) for 10, 30, and 60 s, and the plaque-forming assay is performed in MDCK cells to visualize the live viral titer after irradiation. The data show that the 265 nm- and 256 nm-LEDs can equally inactivate 100% of the viruses in 10 s with an initial titer of 2.3×104 PFU in 60 μL, compared to the 278 nm-LED with an 88.9% reduction in 10 s, and all LEDs can inactivate 100% virus in 60 s (Fig. 5(a)). To further differentiate the effects of the 265 nm- and 256 nm-LEDs, a higher initial viral titer of 2.3×105 PFUs in 60 μL is applied and the live viral titer after 10 s of irradiation is measured, wherein the 256 nm-LED exhibits better inactivation efficiency than the 265 nm-LED by reducing the viral titer to the experimental detection limit of less than 500 PFU/mL (inset in Fig. 5(a)). This indicates that the DUV LEDs with shorter wavelengths within a certain range may be more useful despite their lower LOP, to a certain extent.

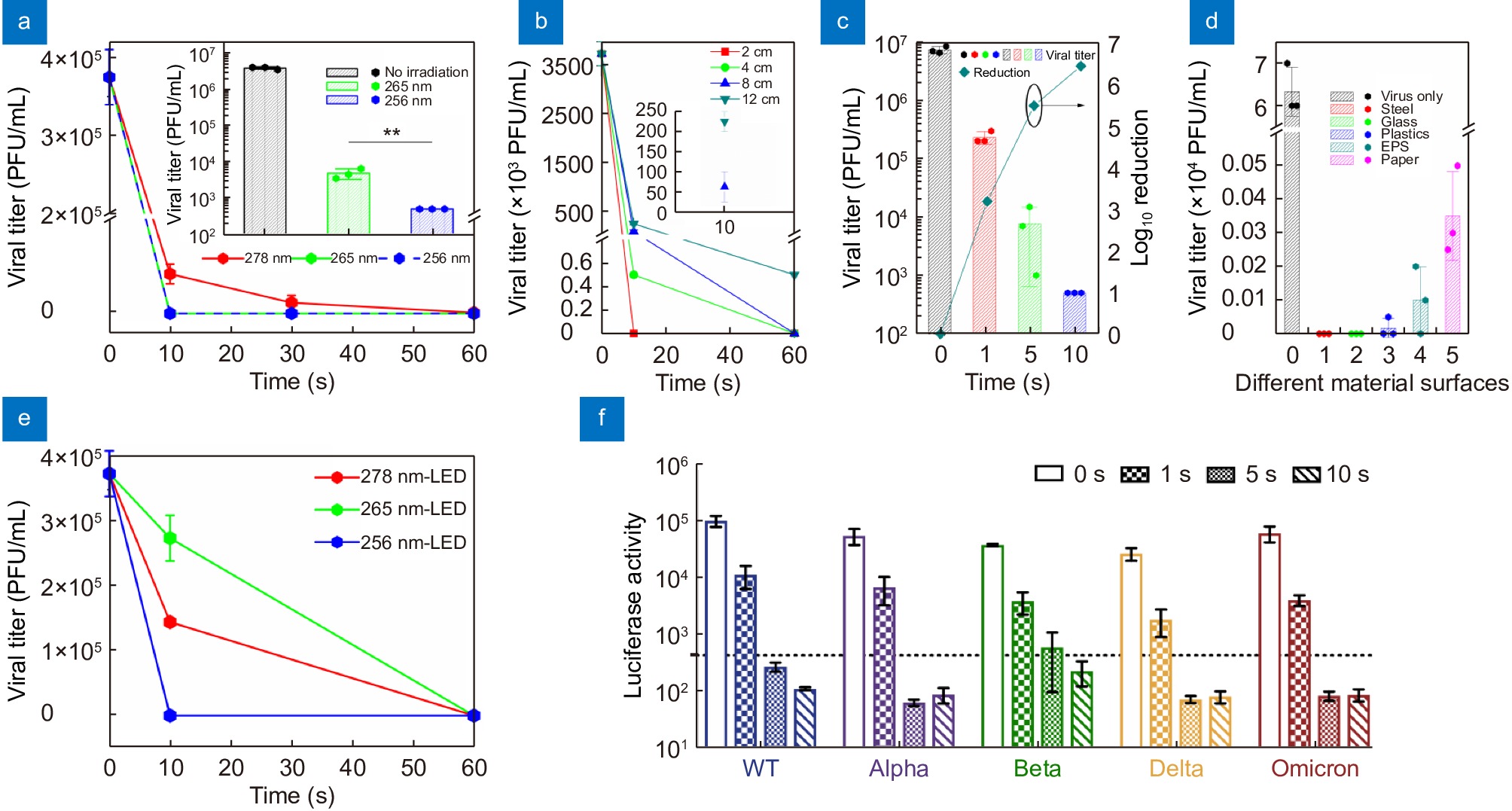

Inactivation effects of the DUV LEDs on IAV and SARS-CoV-2. (a) Inactivation efficiency for IAV with an initial titer of 2.3×104 PFUs in 60 μL. The inset shows the results for a higher initial titer of 2.3×105 PFUs in 60 μL. (b) Irradiation time-dependent viral inactivation effects for IAV from 2 to 12 cm. The inset shows the live viral titer after 10 s at 8 and 12 cm. (c) Viral inactivation effects of the 256 nm-LED for IAV in 10 s at 4 cm. The viral titers determined by the ratio of PFUs (bar chart) and log10 reduction (cyan line) are shown. (d) Live viral titer after 10 s irradiation for IAV at 4 cm on different materials. Values are presented as the means±SDs (n=3, n=number of independent replicates). (e) Inactivation efficiency with an initial titer of 2.3×104 PFUs in 60 μL for SARS-CoV-2. Values are presented as the means±SDs (n=2, n=number of biological replicates). (f) Inactivation effects of the 256 nm-LED for different pSARS-CoV-2 variants. BHK21-hACE2 cells are infected for 24 h with pseudo-SARS-CoV-2 irradiated or not, and then, the luciferase activity is measured to reflect the virus entry efficiency. Time-dependent effects at 4 cm are evaluated by measuring the luciferase activity for individual pSARS-CoV-2. The dotted line represents the detection limit. Values are presented as the means±SDs (n=3, n=number of independent replicates). **p<0.01.
Although we focus on the inactivation effects of the DUV LEDs on RNA viruses in this work, it is also found that the 256 nm-LED can inactive DNA virus adenovirus (Fig. S7). However, under the same conditions, the inactivation efficiency on DNA viruses is lower than that on RNA viruses because DNA is a double-stranded nucleotide, being more stable than RNA. Therefore, DNA virus disinfection might require a longer time. By the way, it is worth mentioning that the performance of the 256 nm-LED used in our inactivation experiments is similar to the commercially available 254 nm-LED (Fig. S8), indicating that sterilization and disinfection using DUV LEDs is not only high-efficiency but also very easy in today’s public life. Moreover, despite the 256 nm-LED irradiation caused little cell damage at this condition (Fig. S9), it is also recommended that DUV exposure should not be too long time and direct eye contact.
Additionally, it is known that viruses can stay active on some surfaces for hours, even up to days. To determine the inactivation effects of the 256 nm-LED on different surfaces, irradiation of viruses on stainless steel, glass, plastic, cystosepiment, and paper is performed at 4 cm for 10 s (~8 mJ/cm2). The 256 nm-LED can completely inactivate viruses (100%) on stainless steel or glass and inactivate 99.97%, 99.85%, and 99.46% of viruses on plastic, cystosepiment, and paper, respectively (Fig. 5(d)). These results show that the 256 nm-LED can disinfect viruses on both smooth and rough surfaces, although virus inactivation on rough surfaces requires a longer time.
Under evolutionary pressure, the COVID-19 pandemic is becoming more complicated. The SARS-CoV-2 virus evolves different variants with various mutations on its outer membrane spike proteins to generate alpha, beta, et al. to omicron variants. The corresponding spike mutations in SARS-CoV-2 variants may induce changes in the physicochemical property of viral outer surface to affect the disinfection efficiency65. To determine whether the inactivation effect of the DUV LED differs between mutations of viruses, we use pseudotyped SARS-CoV-2 viruses taking different mutated spike proteins on their surfaces for irradiation assay. Equal amounts of pseudotyped variants are individually irradiated by the 256 nm-LED for 1–10 s at 4 cm. The data in Fig. 5(f) show that 1 s radiation with the 256 nm-LED can reduce the virus infectivity 10-fold, while 5–10 s radiation, corresponding to irradiation dose of 4–8 mJ/cm2, dramatically eliminates the infectious viruses to lower than the detection limit, for all variants. It suggests that the 256 nm-LED irradiation can reduce the virus infectivity regardless of envelope mutations on spike proteins. This again proves that, the inactivation ability of our 256 nm-LED is undisrupted by changes in viral outer membrane proteins.
To further confirm the inactivation effect of the 256 nm-LED on IAV, we irradiate the virus suspensions at distances of 2, 4, 8, and 12 cm for 10 and 60 s (Fig. 5(b)). The 256 nm-LED can reduce the PFUs of IAV to less than 300 PFUs (> 7600-fold reduction) at 12 cm with a high initial titer of 2.3×105 PFUs. Meanwhile, it can inactivate 100% of the initial virus at shorter distance of 2, 4, and 8 cm in 60 s. For 10 s irradiation, a 2 cm distance supports a 100% disinfection rate with such high initial virus titer, whereas 4 cm and 8 cm offer 99.99% and 98.04% disinfection rates. The infection ratio of the virus suspensions irradiated at 2 and 4 cm for 10 s is less than 0.01% of the non-irradiated control. Moreover, the 256 nm-LED can even decrease higher initial viral titers (4.4×105 PFUs) by 96.82% (log10 > 3), 99.89% (log10 > 5), and 99.90% (log10 > 6) after shorter irradiation times of 1 s, 5 s, and 10 s (Fig. 5(c)). The long effective irradiation distance (12 cm) and short irradiation time (1 s) indicate that the the 256 nm-LED is suitable for extensive use in virus disinfection.
Estimation of the inactivation ability of the 256 nm-LED for human respiratory RNA viruses including IAV, SARS-CoV-2, and HPIV. The viral titers of the virus stock in 60 μL are shown. The values represent means±SD of 3 independent experiments for IAV and HPIV and means±SD of 2 independent experiments for SARS-CoV-2.
Virus Virus original titer Exposure time (s) Light power density (mW/cm2) Irradiation dose (mJ/cm2) Reduction ratio Irradiation ability IAV 3,833,333 (PFU) 10 ~0.8 8 99.99% > 3,820,000 (PFU) SARS-CoV-2 22,500 (PFU) 10 ~0.8 8 100% ≥ 22,500 (PFU) HPIV 106,800 (TCID50) 10 ~0.8 8 100% ≥ 106,800 (TCID50) Then, we irradiate HPIV as well as IAV and SARS-CoV-2 with higher original titers by the 256 nm-LED for 10 s at 4 cm (Table 1). The results again reveal that the 256 nm-LED can have potent virus disinfection effects for various viruses in a short time. To confirm the effects of the DUV light irradiation on the RNA genome, real-time reverse-transcriptase–polymerase chain reaction (qPCR) is performed to quantify the three types of influenza virus RNAs of segment 5 (NP gene): vRNA, cRNA, and mRNA, which represent replication, transcription, and expression of the viral genome, respectively. The total RNA levels in the cell supernatants (Fig. 6(a)) and lysates (Fig. 6(b)) infected with the non-irradiated virus suspension steadily increase at 24 h post-infection. However, cells inoculated with 10 s irradiated viruses show no detectable RNAs, similar to mock infection. Hence, the 256 nm-LED irradiation can completely destroy RNAs to shut down viral replication, transcription and expression.
For SARS-CoV-2, all LEDs can completely inactivate the viruses in 60 s with an initial titer of 2.3×104 PFUs at 4 cm (~48 mJ/cm2), among which the 256 nm-LED performs the best, inactivating 100% of the viruses in 10 s (~8 mJ/cm2) (Fig. 5(e)), again demonstrating the broad-spectrum characteristic and that the shorter the wavelength the better the disinfection effect, to a certain extent. Therefore, researches on AlGaN-based DUV LEDs should focus on shorter wavelengths to improve the quantum efficiency.

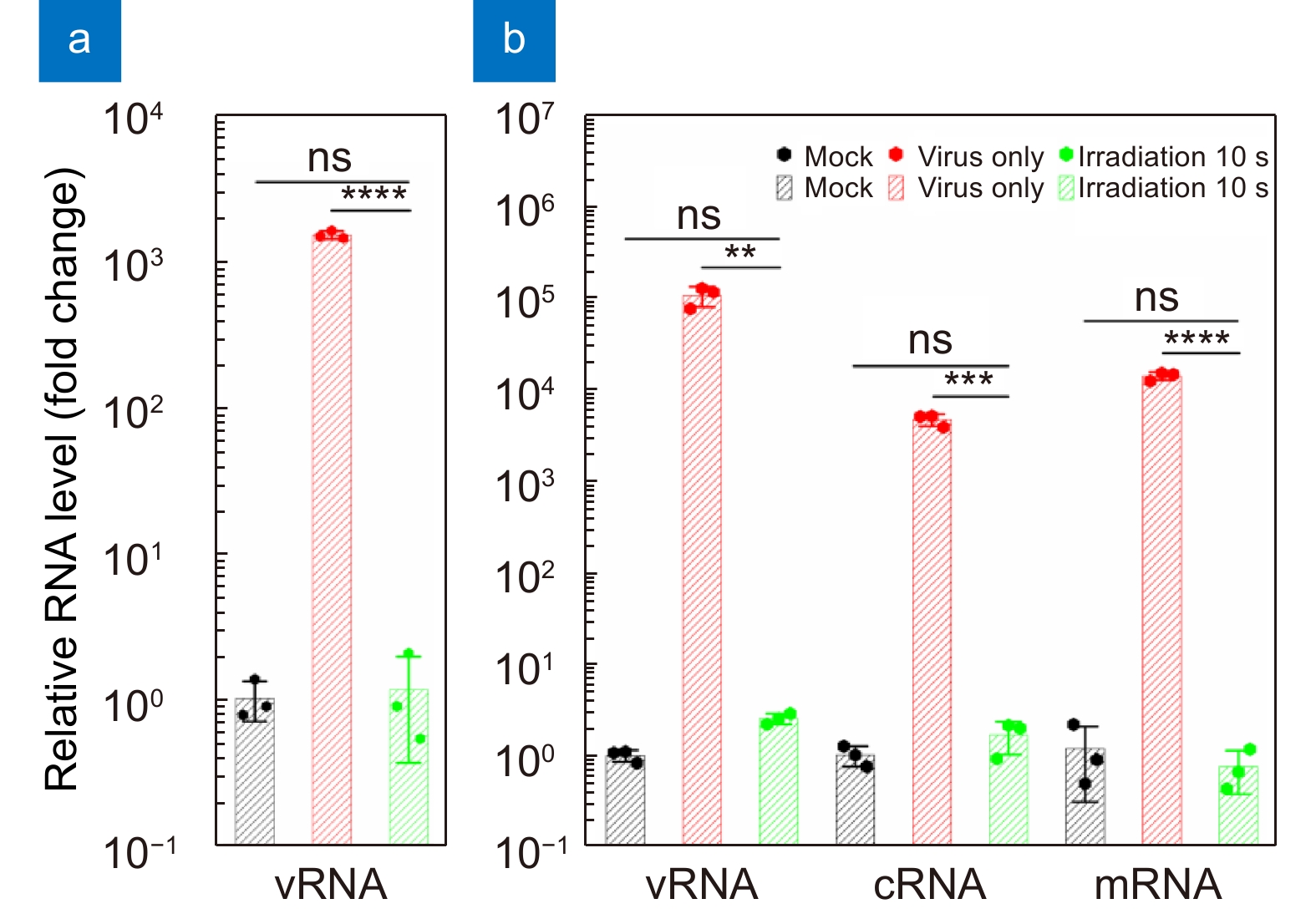

Total relative RNA levels in the cell (a) supernatants and (b) lysates infected by a virus suspension irradiated for 10 s at 4 cm or not after 24 h. The relative RNA level is normalized to that of the mock (non-infected) group. Values are presented as the means±SDs (n=3, n=number of independent replicates). **p < 0.01, ***p < 0.001, ****p < 0.0001.
The 278 nm-, 265 nm-, and 256 nm-LEDs are used to investigate the inactivation effects on human respiratory viruses. Residual live virus titers after radiation are quantified by counting plaque-forming units (PFUs) for IAV and SARS-CoV-2 that are cytolytic to form virus plaque, but by measuring the 50% tissue culture infectious dose (TCID50) for human parainfluenza virus (HPIV) that could not lysis the cell64. Residual live virus titers without DUV radiation rarely change within 600 s (Fig. S6), excluding the influence of other factors other than DUV radiation.
Conclusions
Among the fabricated 278 nm-, 265 nm- and 256 nm-LEDs, the 256 nm-LED shows the most potent inactivation efficiency for both SARS-CoV-2 and IAV at a similar LPD of ~0.8 mW/cm2, implying viruses may be more sensitive to shorter wavelength and research on DUV LEDs should focus on shorter wavelengths to improve the quantum efficiency. It can efficiently inactivate SARS-CoV-2 and its variants (>2.3×104 PFUs, 100% of the initial titer), IAV (>3.8×106 PFUs, 99.99% of the initial titer), and HPIV (>1.1×105 TCID50, 100% of the initial titer) within 10 s at 4 cm (~8 mJ/cm2). Besides, it can still be effective at an irradiation distance as far as 12 cm for virus inactivation, can disinfect viruses on both smooth and rough surfaces, and can destroy vRNA genes of different virus families and gene lengths. These results confirm the portable, long-lasting and broad-spectrum characteristics of the AlGaN-based DUV LED disinfection, contributing to the advanced DUV LED application of disinfecting viruses.
Infection with human respiratory RNA viruses like SARS-CoV-2 has led to substantial morbidity, mortality, and economic losses worldwide. Efficient, eco-friendly, portable, and broad-spectrum disinfection methods for protection from viral infection have long been pursued. DUV irradiation is an effective non-contact virus inactivation method. In this work, we fabricate AlGaN-based DUV LEDs with different peak wavelength of 256, 265, and 278 nm on SCS HTA AlN/Sapphire templates and investigate their inactivation effects on human respiratory RNA viruses including SARS-CoV-2, IAV, and HPIV. It is found the SCS in the template significantly affect the upper AlGaN quality, resulting a high density dislocations, rough interfaces and surfaces, and even nonluminescence of the upper LEDs. Hence, it is very important to explore the SCS control methods before the HTA method can be large-scale applied. The SLs are introduced to release the SCS from the HTA template, based on which high performance DUV LEDs can be realized, providing an effective stress regulation strategy. The mechanism is mainly due to the periodic growth mode transition from 3D to 2D and the compositional pulling effect in the first several cycles.
Acknowledgements
We are grateful for financial supports from the National Key R&D Program of China (2022YFB3605001), National Natural Science Foundation of China (62121005, 62004196, 61725403, 31922004, and 61827813), Youth Innovation Promotion Association of Chinese Academy of Sciences (2023223), Young Elite Scientist Sponsorship Program by CAST (YESS20200182), and Innovation Team Project from the Hubei Province (2020CFA015).
Competing interests
The authors declare no competing financial interests.
-
