Fusing point cloud with image for object detection using convolutional neural networks

Zhang Jiesong; Huang Yingping; Zhang Rui

doi:10.12086/oee.2021.200418

Article navigation > Opto-Electronic Engineering > 2021 Vol. 48 > No. 5 > 200418

Next Article Previous Article

Zhang J S, Huang Y P, Zhang R. Fusing point cloud with image for object detection using convolutional neural networks[J].Opto-Electron Eng, 2021, 48(5): 200418. doi: 10.12086/oee.2021.200418

Citation:

Zhang J S, Huang Y P, Zhang R. Fusing point cloud with image for object detection using convolutional neural networks[J].Opto-Electron Eng, 2021, 48(5): 200418. doi: 10.12086/oee.2021.200418

Fusing point cloud with image for object detection using convolutional neural networks

School of Optical-Electronic and Computer Engineering, University of Shanghai for Science and Technology, Shanghai 200093, China

Fund Project: Shanghai Nature Science Foundation of Shanghai Science and Technology Commission, China (20ZR1437900) and National Nature Science Foundation of China (61374197)

More Information

^*Corresponding author: Huang Yingping. E-mail: huangyingping@usst.edu.cn

Received Date 10 November 2020

Revised Date 22 January 2021

Published Date 15 May 2021

Abstract

Abstract

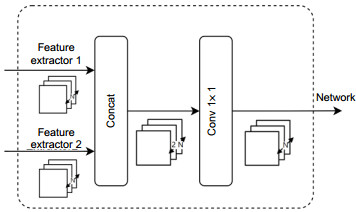

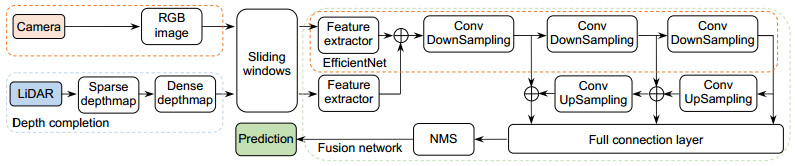

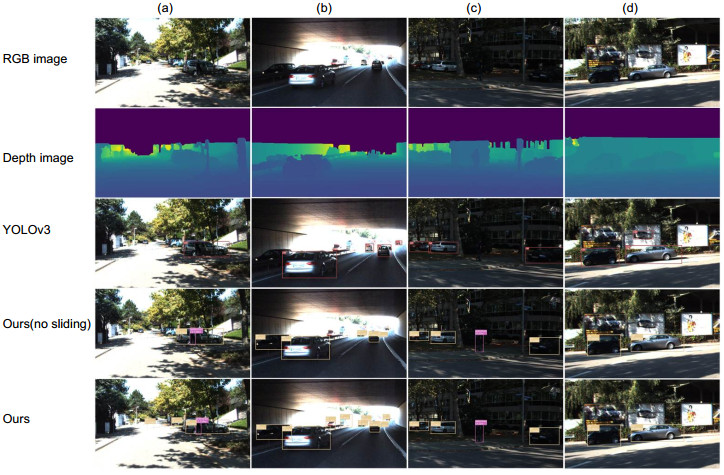

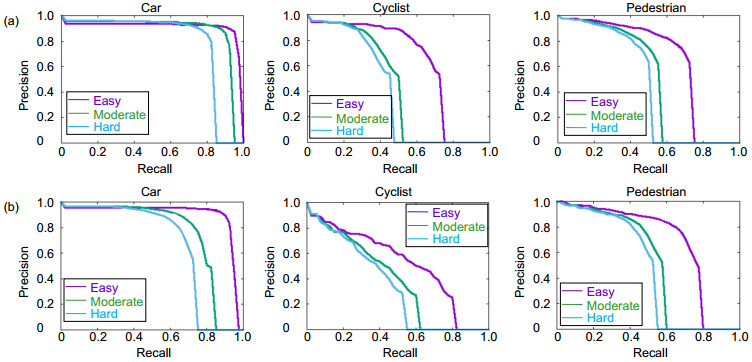

Addressing on the issues like varying object scale, complicated illumination conditions, and lack of reliable distance information in driverless applications, this paper proposes a multi-modal fusion method for object detection by using convolutional neural networks. The depth map is generated by mapping LiDAR point cloud onto the image plane and taken as input data together with the RGB image. The input data is also processed by the sliding window to reduce information loss. Two feature extracting networks are used to extract features of the image and the depth map respectively. The generated feature maps are fused through a connection layer. The objects are detected by processing the fused feature map through position regression and object classification. Non-maximal suppression is used to optimize the detection results. The experimental results on the KITTI dataset show that the proposed method is robust in various illumination conditions and especially effective on detecting small objects. Compared with other methods, the proposed method exhibits integrated advantages in terms of detection accuracy and speed.
- data fusion /
- object detection /
- convolutional neural networks /
- sliding window

FullText(HTML)

References

[1]	Girshick R, Donahue J, Darrell T, et al. Rich feature hierarchies for accurate object detection and semantic segmentation[C]//Proceedings of 2014 IEEE Conference on Computer Vision and Pattern Recognition, Columbus, OH, USA, 2014: 580-587. Google Scholar
[2]	He K M, Zhang X Y, Ren S Q, et al. Spatial pyramid pooling in deep convolutional networks for visual recognition[J]. IEEE Trans Pattern Anal Mach Intell, 2015, 37(9): 1904-1916. doi: 10.1109/TPAMI.2015.2389824 CrossRef Google Scholar
[3]	Girshick R. Fast R-CNN[C]//Proceedings of 2015 IEEE International Conference on Computer Vision, Santiago, Chile, 2015: 1440-1448. Google Scholar
[4]	Ren S Q, He K M, Girshick R, et al. Faster R-CNN: towards real-time object detection with region proposal networks[J]. IEEE Trans Pattern Anal Mach Intell, 2017, 39(6): 1137-1149. doi: 10.1109/TPAMI.2016.2577031 CrossRef Google Scholar
[5]	Redmon J, Divvala S, Girshick R, et al. You only look once: unified, real-time object detection[C]//Proceedings of 2016 IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 2016: 779-788. Google Scholar
[6]	Redmon J, Farhadi A. YOLO9000: better, faster, stronger[C]//Proceedings of 2017 IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 2017: 7263-7271. Google Scholar
[7]	Liu W, Anguelov D, Erhan D, et al. SSD: single shot MultiBox detector[C]//Proceedings of the 14th European Conference on Computer Vision, Amsterdam, The Netherlands, 2016: 21-37. Google Scholar
[8]	Redmon J, Farhadi A. YoLOv3: an incremental improvement[Z]. arXiv: 1804.02767, 2018. Google Scholar
[9]	Qi C R, Su H, Mo K C, et al. PointNet: deep learning on point sets for 3D classification and segmentation[C]//Proceedings of 2017 IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 2017: 652-660. Google Scholar
[10]	Qi C R, Yi L, Su H, et al. PointNet++: deep hierarchical feature learning on point sets in a metric space[C]//Proceedings of the 31st International Conference on Neural Information Processing Systems, Long Beach, CA, USA, 2017: 5099-5108. Google Scholar
[11]	Zhou Y, Tuzel O. VoxelNet: end-to-end learning for point cloud based 3D object detection[C]//Proceedings of 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 2018: 4490-4499. Google Scholar
[12]	Simon M, Milz S, Amende K, et al. Complex-YOLO: Real-time 3D object detection on point clouds[Z]. arXiv: 1803.06199, 2018. Google Scholar
[13]	Beltrán J, Guindel C, Moreno F M, et al. BirdNet: a 3D object detection framework from LiDAR information[C]//Proceedings of 2018 21st International Conference on Intelligent Transportation Systems, Maui, HI, USA, 2018: 3517-3523. Google Scholar
[14]	Minemura K, Liau H, Monrroy A, et al. LMNet: real-time multiclass object detection on CPU using 3D LiDAR[C]//Proceedings of 2018 3rd Asia-Pacific Conference on Intelligent Robot Systems, Singapore, 2018: 28-34. Google Scholar
[15]	Li B, Zhang T L, Xia T. Vehicle detection from 3D lidar using fully convolutional network[Z]. arXiv: 1608.07916, 2016. Google Scholar
[16]	Qi C R, Liu W, Wu C X, et al. Frustum PointNets for 3D object detection from RGB-D data[C]//Proceedings of 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition, Salt Lake City, UT, USA, 2018: 918-927. Google Scholar
[17]	Du X X, Ang M H, Karaman S, et al. A general pipeline for 3D detection of vehicles[C]//Proceedings of 2018 IEEE International Conference on Robotics and Automation, Brisbane, QLD, Australia, 2018: 3194-3200. Google Scholar
[18]	Du X X, Ang M H, Rus D. Car detection for autonomous vehicle: LIDAR and vision fusion approach through deep learning framework[C]//Proceedings of 2017 IEEE/RSJ International Conference on Intelligent Robots and Systems, Vancouver, BC, Canada, 2017: 749-754. Google Scholar
[19]	Chen X Z, Ma H M, Wan J, et al. Multi-view 3D object detection network for autonomous driving[C]//Proceedings of 2017 IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 2017: 1907-1915. Google Scholar
[20]	Ku J, Mozifian M, Lee J, et al. Joint 3D proposal generation and object detection from view aggregation[C]//Proceedings of 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems, Madrid, Spain, 2018: 1-8. Google Scholar
[21]	Tan M X, Le Q V. EfficientNet: rethinking model scaling for convolutional neural networks[Z]. arXiv: 1905.11946, 2020. Google Scholar
[22]	Lin T Y, Dollár P, Girshick R, et al. Feature pyramid networks for object detection[C]//Proceedings of 2017 IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 2017: 2117-2125. Google Scholar
[23]	He K M, Zhang X Y, Ren S Q, et al. Deep residual learning for image recognition[C]//Proceedings of 2016 IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 2016: 770-778. Google Scholar
[24]	Huang G, Liu Z, Van Der Maaten L, et al. Densely connected convolutional networks[C]//Proceedings of 2017 IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 2017: 4700-4708. Google Scholar
[25]	Szegedy C, Vanhoucke V, Ioffe S, et al. Rethinking the inception architecture for computer vision[C]//Proceedings of 2016 IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 2016: 2818-2826. Google Scholar
[26]	Huang Y P, Cheng Y L, Bapna A, et al. GPipe: efficient training of giant neural networks using pipeline parallelism[C]//Proceedings of the 33rd Conference on Neural Information Processing Systems, Vancouver, Canada, 2019: 103-112. Google Scholar
[27]	常昕, 陈晓冬, 张佳琛, 等. 基于激光雷达和相机信息融合的目标检测及跟踪[J]. 光电工程, 2019, 46(7): 180420. doi: 10.12086/oee.2019.180420 CrossRef Google Scholar Chang X, Chen X D, Zhang J C, et al. An object detection and tracking algorithm based on LiDAR and camera information fusion[J]. Opto-Electron Eng, 2019, 46(7): 180420. doi: 10.12086/oee.2019.180420 CrossRef Google Scholar
[28]	Chattopadhay A, Sarkar A, Howlader P, et al. Grad-CAM++: generalized gradient-based visual explanations for deep convolutional networks[C]//Proceedings of 2018 IEEE Winter Conference on Applications of Computer Vision, Lake Tahoe, NV, USA, 2018: 839-847. Google Scholar

Overview

Overview

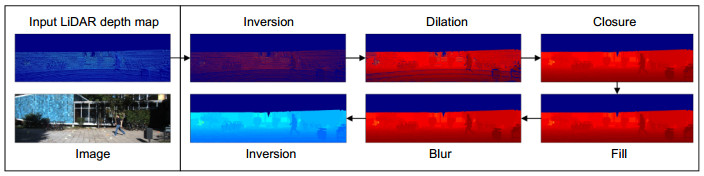

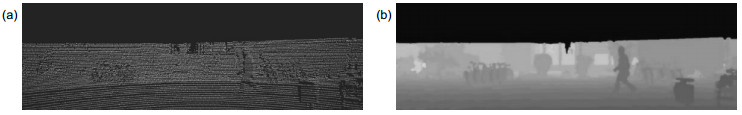

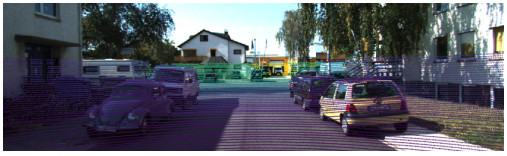

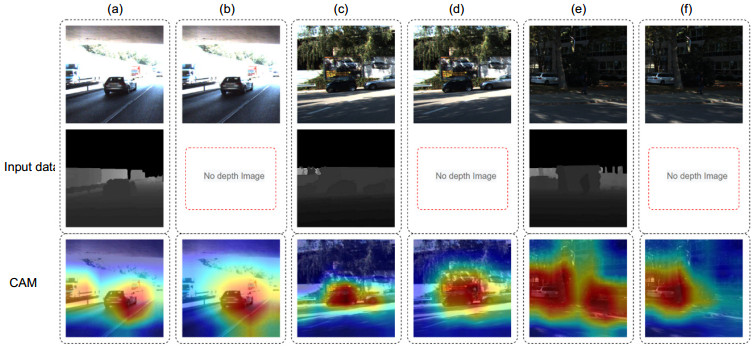

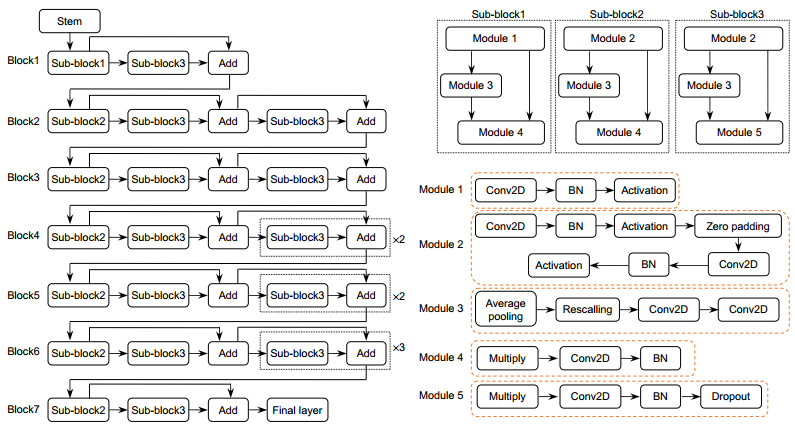

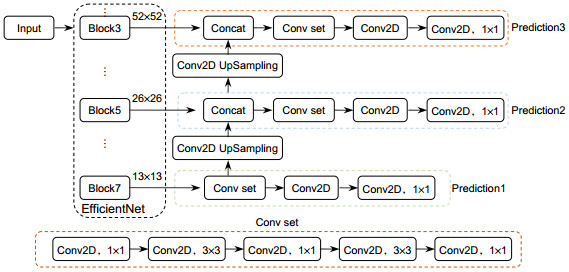

Overview: Autonomous vehicles are equipped with cameras and light detection and ranging (LiDAR) for obstacle detection. Cameras can provide dense texture and color information, but the nature of the passive sensor makes it vulnerable to variations in ambient lighting. LiDAR can get accurate spatial information and is not affected by seasons and lighting conditions, but the point cloud data is sparse and distributed non-uniformly. Single sensor cannot provide satisfactory solution for task of environment perception. Fusion of the two sensors can take advantage of the two modalities of data, improving the robustness and accuracy. In recent years, convolutional neural networks (CNNs) have achieved great success in vision-based object detection and also provide an efficient tool for multi-modal data fusion. This paper proposes a novel multi-modal fusion method for object detection by using CNNs. The depth information provided by LiDAR is used as additional features to train CNNs. Disordered and sparse point cloud is projected onto the image plane to generate the depth map which is processed by a depth completion algorithm. The dense depth map and the RGB image are taken as the input of the network. The input data is also processed by sliding the window to reduce information loss caused by resolution mismatch and inappropriate aspect ratio. We adopt EfficientNet-B2 as backbone network of feature extraction, data fusion, and detection. The network extracts respectively the features of the RGB image and the depth map and then fuses the feature maps together through a connection layer. Followed by 1×1 convolution operation, the detection network uses feature pyramid to generate three scales of feature maps and estimates objects through position regression and object classification. Non-maximum suppression is used to optimize the detection results for all sliding windows. The output of the network contains information about location, class, confidence and distance of the target. The experiments were conducted on the KITTI benchmark dataset by using a workstation equipped with 4-core processor and 11 GB NVIDIA 1080Ti GPU and Pytorch neural network framework. By quantitatively analyzing the single-frame inference time and average precision (mAP) of different data modality detection methods, the experimental results show that our method achieves a balance between detection accuracy and detection speed. By qualitatively analyzing the performance of different detection methods under various scenarios, the results show that the proposed method is robust in various illumination conditions and especially effective on detecting small objects.
