sCMOS real-time nonuniformity correction based on adaptive multipoint method

Zhang Tao; Li Xinyang; Li Jianfeng; Xu Zhi

doi:10.12086/oee.2021.210036

Article navigation > Opto-Electronic Engineering > 2021 Vol. 48 > No. 5 > 210036

Next Article Previous Article

Zhang T, Li X Y, Li J F, et al. sCMOS real-time nonuniformity correction based on adaptive multipoint method[J]. Opto-Electron Eng, 2021, 48(5): 210036. doi: 10.12086/oee.2021.210036

Citation:

Zhang T, Li X Y, Li J F, et al. sCMOS real-time nonuniformity correction based on adaptive multipoint method[J]. Opto-Electron Eng, 2021, 48(5): 210036. doi: 10.12086/oee.2021.210036

sCMOS real-time nonuniformity correction based on adaptive multipoint method

1.
Institute of Optics and Electronics, Chinese Academy of Sciences, Chengdu, Sichuan 610209, China
2.
School of Optoelectronics Science and Engineering, University of Electronic Science and Technology of China, Chengdu, Sichuan 610054, China
3.
Yunnan Observatory, Chinese Academy of Sciences, Kunming, Yunnan 650216, China

Fund Project: National Natural Science Foundation of China (11573066) and Yunnan Province Basic Research Plan (2019FA001)

More Information

^*Corresponding author: Li Xinyang. E-mail: xyli@ioe.ac.cn

Received Date 26 January 2021

Revised Date 31 March 2021

Published Date 15 May 2021

Abstract

Abstract

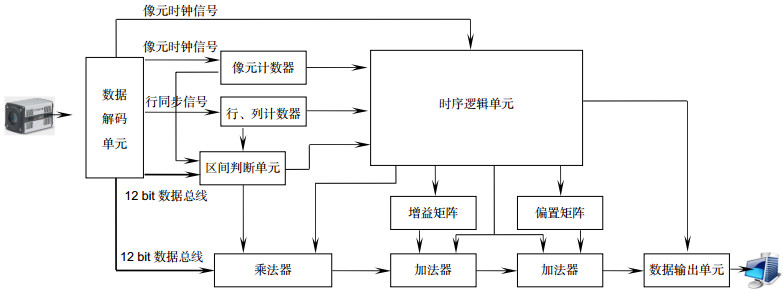

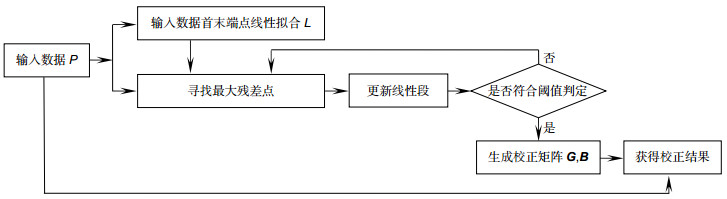

In order to improve the nonuniformity caused by the process bias of sCMOS readout circuit, an adaptive multipoint nonuniformity correction method is presented. The algorithm first determines the location of the optimal segment point and the optimal number of segments by searching for the minimum norm point and threshold comparison, then corrects two points in each interval segment according to the segment information. This adaptive method can effectively improve the correction performance of traditional multipoint methods, which is caused by improper selection of segment parameters. At the same time, in order to achieve real-time non-uniformity correction, a matching embedded data series correction scheme is proposed based on the algorithm characteristics of adaptive multipoint method, which can achieve non-uniformity correction without affecting the existing camera acquisition structure and acquisition rate.
- non-uniformity /
- multipoint /
- adaptive /
- real-time processing

FullText(HTML)

References

[1]	韩开亮, 何春芳. 基于两点法的红外图像非均匀性校正算法及其DSP实现[J]. 红外技术, 2007, 29(9): 541–544. doi: 10.3969/j.issn.1001-8891.2007.09.012 CrossRef Google Scholar Han K L, He C F. A nonuniformity correction algorithm for IRFPAs based on two points and it's realization by DSP[J]. Infrared Technol, 2007, 29(9): 541–544. doi: 10.3969/j.issn.1001-8891.2007.09.012 CrossRef Google Scholar
[2]	Xing S, Zhang J, Sun L, et al. Two-point nonuniformity correction based on LMS[C]//Infrared Components and Their Applications. International Society for Optics and Photonics, 2005, 5640: 130–136. Google Scholar
[3]	Wang H W, Ma C W, Cao J Z, et al. An adaptive two-point non-uniformity correction algorithm based on shutter and its implementation[C]//Proceedings of 2013 Fifth International Conference on Measuring Technology and Mechatronics Automation, 2013: 174–177. Google Scholar
[4]	李言旭, 孙德新, 刘银年. 基于多项式拟合的红外焦平面非均匀性校正[J]. 激光与红外, 2005, 35(2): 104–107. Google Scholar Li Y X, Sun D X, Liu Y N. Polynomial fitting based on nonuniformity correction of infrared focal plane arrays[J]. Laser Infrared, 2005, 35(2): 104–107. Google Scholar
[5]	黄英东, 安建波. 基于改进多项式拟合的红外焦平面非均匀性校正方法[J]. 红外, 2011, 32(3): 29–33. Google Scholar Huang Y D, An J B. A nonuniformity correction algorithm for IRFPA based on improved polynomial fitting[J]. Infrared, 2011, 32(3): 29–33. Google Scholar
[6]	Gadallah F L, Csillag F, Smith E J M. Destriping multisensor imagery with moment matching[J]. Int J Remote Sens, 2000, 21(12): 2505–2511. doi: 10.1080/01431160050030592 CrossRef Google Scholar
[7]	钱润达, 赵东, 周慧鑫, 等. 基于加权引导滤波与时域高通滤波的非均匀性校正算法[J]. 红外与激光工程, 2018, 47(12): 1204001. Google Scholar Qian R D, Zhao D, Zhou H X, et al. Non-uniformity correction algorithm based on weighted guided filter and temporal high-pass filter[J]. Infrared Laser Eng, 2018, 47(12): 1204001. Google Scholar
[8]	Scribner D A, Sarkady K A, Caulfield J T, et al. Nonuniformity correction for staring IR focal plane arrays using scene-based techniques[J]. Proc SPIE, 1990, 1308: 224–233. Google Scholar
[9]	张爽, 周慧鑫, 牛肖雪, 等. 基于非局部均值滤波与时域高通滤波的非均匀性校正算法[J]. 光子学报, 2014, 43(1): 0110003. Google Scholar Zhang S, Zhou H X, Niu X X, et al. Temporal high-pass filter nonuniformity correction algorithm based on non-local means filter for infrared focal plane array[J]. Acta Photon Sin, 2014, 43(1): 0110003. Google Scholar
[10]	李佳, 秦翰林, 延翔, 等. 时空域非线性滤波红外序列图像非均匀性校正[J]. 光子学报, 2015, 44(4): 0410001. Google Scholar Li J, Qin H L, Yan X, et al. Temporal-spatial nonlinear filter based non-uniformity correction method for IR image sequence[J]. Acta Photon Sin, 2015, 44(4): 0410001. Google Scholar
[11]	Münch B, Trtik P, Marone F, et al. Stripe and ring artifact removal with combined wavelet—Fourier filtering[J]. Opt Express, 2009, 17(10): 8567–8591. doi: 10.1364/OE.17.008567 CrossRef Google Scholar
[12]	Pande-Chhetri R, Abd-Elrahman A. De-striping hyperspectral imagery using wavelet transform and adaptive frequency domain filtering[J]. ISPRS J Photogramm Remote Sens, 2011, 66(5): 620–636. doi: 10.1016/j.isprsjprs.2011.04.003 CrossRef Google Scholar
[13]	Feng Q L, Gong J H. Destriping remotely sensed data using anisotropic diffusion in wavelet domain[C]//Proceedings of 2014 4th IEEE International Conference on Information Science and Technology, 2014. Google Scholar
[14]	Vera E, Meza P, Torres S. Total variation approach for adaptive nonuniformity correction in focal-plane arrays[J]. Opt Lett, 2011, 36(2): 172–174. doi: 10.1364/OL.36.000172 CrossRef Google Scholar
[15]	Bouali M, Ladjal S. Toward optimal destriping of MODIS data using a unidirectional variational model[J]. IEEE Trans Geosci Remote Sens, 2011, 49(8): 2924–2935. doi: 10.1109/TGRS.2011.2119399 CrossRef Google Scholar
[16]	Zhou G, Fang H Z, Yan L X, et al. Removal of stripe noise with spatially adaptive unidirectional total variation[J]. Optik, 2014, 125(12): 2756–2762. doi: 10.1016/j.ijleo.2013.11.031 CrossRef Google Scholar
[17]	Liu H, Zhang Z L, Liu S Y, et al. Destriping algorithm with L0 sparsity prior for remote sensing images[C]//Proceedings of 2015 IEEE International Conference on Image Processing, 2015. Google Scholar
[18]	Celedón N, Redlich R, Figueroa M. FPGA-based neural network for nonuniformity correction on infrared focal plane arrays[C]//Proceedings of 2012 15th Euromicro Conference on Digital System Design, 2012: 193–200. Google Scholar
[19]	Vera E, Torres S. Fast adaptive nonuniformity correction for infrared focal-plane array detectors[J]. EURASIP J Adv Signal Process, 2005, 2005(13): 560759. doi: 10.1155/ASP.2005.1994 CrossRef Google Scholar
[20]	徐文文, 周建勇, 唐遵烈, 等. TDI-CCD多抽头图像合成及非均匀性校正[J]. 半导体光电, 2009, 30(1): 153–155. Google Scholar Xu W W, Zhou J Y, Tang Z L, et al. Synthesis and non-uniformity correction of TDI-CCD multi-tap's imaging[J]. Semicond Optoelectron, 2009, 30(1): 153–155. Google Scholar
[21]	吕雷, 张学峰. 基于FPGA的红外图像实时非均匀性校正[J]. 激光与红外, 2011, 41(6): 641–643. Google Scholar Lü L, Zhang X F. Real-time infrared image nonuniformity correction base on FPGA[J]. Laser Infrared, 2011, 41(6): 641–643. Google Scholar
[22]	程旺, 吕群波, 赵娜. 基于FPGA的科学级CMOS图像传感器非均匀性校正[J]. 半导体光电, 2016, 37(6): 873–875, 889. Google Scholar Cheng W, Lv Q B, Zhao N. Non-uniformity correction of scientific CMOS image sensor based on FPGA[J]. Semicond Optoelectron, 2016, 37(6): 873–875, 889. Google Scholar
[23]	夏候耀涛, 王万平, 黄涛. 基于FPGA的CMOS图像实时非均匀性校正方法[J]. 电子设计工程, 2019, 27(1): 184–188. Google Scholar Xiahou Y T, Wang W P, Huang T. The real-time non-uniformity correction method on multichannel CMOS images based on FPGA[J]. Electron Des Eng, 2019, 27(1): 184–188. Google Scholar

Overview

Overview

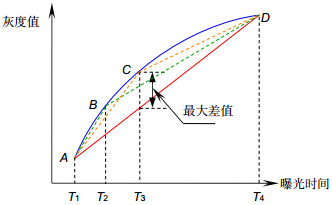

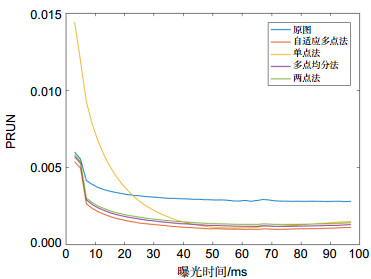

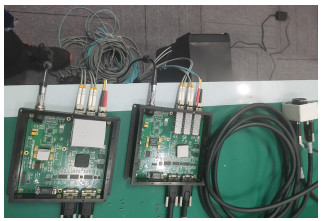

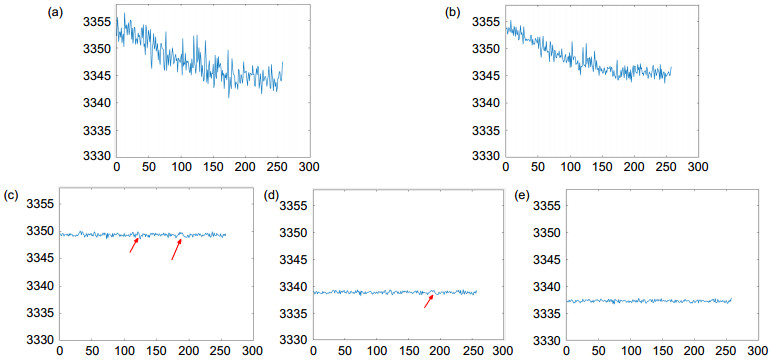

Overview: sCMOS is a photoelectric detection device widely used in scientific research field today. The parameter mismatch between the column amplifiers may occur due to its process, which leads to the nonuniformity problem. The methods for nonuniformity correction can be divided into scene-based and calibration-based methods. In the real-time application scenarios, the calibration-based multipoint nonuniformity correction method is widely used in engineering because of its simple calculation and high accuracy. However, the multipoint correction method has some difficulties in selecting the location and number of segments. The calibration-based adaptive multipoint correction method proposed in this paper can automatically obtain the optimal location and optimal number of segments by searching for the maximum error point and the number of segments closest to the accuracy threshold. This method can effectively avoid the degradation of the correction performance caused by improper selection of segment parameters in traditional multipoint methods. The basic principle is to search for the maximum error point between the non-linear photoelectric response curve of each pixel and the straight line composed of the first and last points as the basis for selecting the segment location, and to calculate the error accuracy of the segment as the basis for selecting the number of segments. After obtaining the segment points and the number of segments, the two-point method can be repeated for each linear segment to correct each segment straight line to the reference line, where the reference curve is obtained by fitting the global average point. Experimental results show that the sCMOS image processed by the adaptive multipoint correction method has better PRUN and more uniform and stable column mean curve than traditional single-point, two-point and average multipoint methods. For an image acquisition system where the acquisition software and the system structure are solidified, an embedded data series correction scheme is presented according to the characteristics of the adaptive multipoint method in order to achieve nonuniformity correction while maintaining the existing acquisition structure. By comparing the decoded data from the sCMOS camera with the lookup table, the offset and gain correction coefficients for the matching segment period and the corresponding period are determined. Subsequent multipliers and adders are used to correct the linear segment to the reference line using a two-point method. Finally, the corrected data is encoded and output in the original data format. With this scheme, a camera with a frame rate of 200 frames per second at the 2k×2k resolution used in the experiment can achieve real-time nonuniformity correction without changing the collection structure, acquisition rate and acquisition software of the existing camera.
