Analysis of temperature-induced liquid crystal phase control beam quality deterioration

Huang Fan; Wang Xiangru; He Xiaoxian; Zhang Mengxue; Wang Yingli; Guo Hongyang; Hu Jie; Ma Haotong

doi:10.12086/oee.2021.200463

Article navigation > Opto-Electronic Engineering > 2021 Vol. 48 > No. 6 > 200463

Next Article Previous Article

Huang F, Wang X R, He X X, et al. Analysis of temperature-induced liquid crystal phase control beam quality deterioration[J]. Opto-Electron Eng, 2021, 48(6): 200463. doi: 10.12086/oee.2021.200463

Citation:

Huang F, Wang X R, He X X, et al. Analysis of temperature-induced liquid crystal phase control beam quality deterioration[J]. Opto-Electron Eng, 2021, 48(6): 200463. doi: 10.12086/oee.2021.200463

Analysis of temperature-induced liquid crystal phase control beam quality deterioration

1.
School of Optoelectronic Science and Engineering, University of Electronic Science and Technology of China, Chengdu, Sichuan 611731, China
2.
Institute of Optics and Electronics, Chinese Academy Sciences, Chengdu, Sichuan 610209, China

Fund Project: National Natural Science Foundation of China (61775026, 61871031), National Key R&D Program of China (2018YFA0307400), Central University Basic Research Fund (ZYGX2018J048), and Sichuan Province Science and Technology Plan (2020YFG0038)

More Information

^*Corresponding author: Wang Xiangru, E-mail: xiangruwang@uestc.edu.cn

Received Date 16 December 2020

Revised Date 18 April 2021

Published Date 01 June 2021

Abstract

Abstract

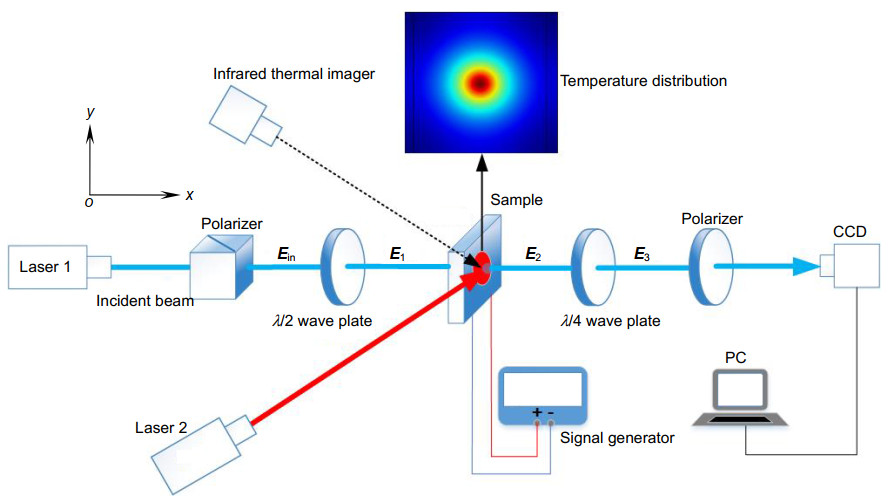

The liquid crystal optical phased array (LCOPA) is the core device of next-generation beam control technology. Improving its laser-induced damage threshold is one of the current research hot spots. Aiming at the scene of higher power laser incidence, the degradation degree of LCOPA phase modulation performance should be evaluated. Based on the traditional quarter-wave plate method, this paper realizes fast and direct measurement of the phase modulation of the liquid crystal to the incident laser. The verification test found that when the core temperature is 33 ℃, the corresponding maximum phase aberration is 3.6 rad. At the same time, based on the measured phase modulation results, this paper studies the deterioration process of the beam quality of the outgoing light. Analysis results show that the deterioration of beam quality is less than 20% when the core temperature of the liquid crystal phase shifter changes less than 10 ℃.
- liquid crystal optical phased array /
- high power laser /
- phase deterioration /
- beam quality

FullText(HTML)

References

[1]	张健, 徐林, 吴丽莹, 等. 液晶光学相控阵可编程光束偏转研究[J]. 光子学报, 2008, 37(8): 1497-1502. Google Scholar Zhang J, Xu L, Wu L Y, et al. Programmable beam steering based on liquid crystal optical phased array[J]. Acta Photon Sin, 2008, 37(8): 1497-1502. Google Scholar
[2]	McManamon P. An overview of optical phased array technology and status[J]. Proc SPIE, 2005, 5947: 594701. doi: 10.1117/12.620260 CrossRef Google Scholar
[3]	赵祥杰, 刘仓理, 张大勇, 等. 液晶相控阵衍射效率的优化分析[J]. 光学学报, 2013, 33(11): 1123002. Google Scholar Zhao X J, Liu C L, Zhang D Y, et al. Optimized analysis of diffraction efficiency for liquid crystal optical phased array[J]. Acta Opt Sin, 2013, 33(11): 1123002. Google Scholar
[4]	孔令讲, 易伟, 杨建宇, 等. 激光雷达液晶相控阵组件扫描精度分析[J]. 中国激光, 2009, 36(5): 1080-1085. Google Scholar Kong L J, Yi W, Yang J Y, et al. Reseach on scanning accuracy of liquid crystal phased array component of laser radar[J]. Chin J Lasers, 2009, 36(5): 1080-1085. Google Scholar
[5]	宋艳. 液晶相控阵波束控制模型与算法研究[D]. 成都: 电子科技大学, 2010: 16-34. Google Scholar
[6]	Gu D, Wen B, Mahajan M, et al. High power liquid crystal spatial light modulators[J]. Proc SPIE, 2006, 6306: 630602. doi: 10.1117/12.683829 CrossRef Google Scholar
[7]	Xi T, Di J L, Dou J Z, et al. Measurement of thermal effect in high-power laser irradiated liquid crystal device using digital holographic interferometry[J]. Appl Phys B, 2019, 125(6): 103. doi: 10.1007/s00340-019-7216-x CrossRef Google Scholar
[8]	赵祥杰, 骆永全, 王海峰, 等. 强激光诱导液晶衍射环现象的实验与数值研究[J]. 液晶与显示, 2010, 25(5): 661-665. doi: 10.3969/j.issn.1007-2780.2010.05.010 CrossRef Google Scholar Zhao X J, Luo Y Q, Wang H F, et al. Propagation of high power laser beam in nematic liquid crystal and its diffraction ring effect[J]. Chin J Liq Cryst Disp, 2010, 25(5): 661-665. doi: 10.3969/j.issn.1007-2780.2010.05.010 CrossRef Google Scholar
[9]	Santamato E, Abbate G, Maddalena P, et al. Laser-induced nonlinear dynamics in a nematic liquid-crystal film[J]. Phys Rev Lett, 1990, 64(12): 1377-1380. doi: 10.1103/PhysRevLett.64.1377 CrossRef Google Scholar
[10]	Lukishova S G. Liquid crystals under high-power, nanosecond laser irradiation[J]. Proc SPIE, 2013, 8642: 86420A. Google Scholar
[11]	Dorschner T A. Adaptive Photonic phase locked elements: an overview (Briefing charts)[R]. Raytheon Co El Segundo Ca Network Centric Systems, 2007. Google Scholar
[12]	Cao Z L, Mu Q Q, Hu L F, et al. The durability of a liquid crystal modulator for use with a high power laser[J]. J Opt A: Pure Appl Opt, 2007, 9(4): 427-430. doi: 10.1088/1464-4258/9/4/018 CrossRef Google Scholar
[13]	刘晓凤, 赵元安, 彭丽萍, 等. 液晶相位调控器件的高功率激光应用相关问题[J]. 强激光与粒子束, 2020, 32(3): 032003. Google Scholar Liu X F, Zhao Y A, Peng L P, et al. Application problems of liquid crystal phase modulators to high power lasers[J]. High Power Laser Part Beams, 2020, 32(3): 032003. Google Scholar
[14]	He X X, Wang X R, Wu L, et al. Theoretical modeling on the laser induced effect of liquid crystal optical phased beam steering[J]. Opt Commun, 2017, 382: 437-443. doi: 10.1016/j.optcom.2016.08.020 CrossRef Google Scholar
[15]	Zhou Z Q, Wang X R, Zhuo R S, et al. Theoretical modeling on the laser-induced phase deformation of liquid crystal optical phased shifter[J]. Appl Phys B, 2018, 124(3): 35. doi: 10.1007/s00340-018-6905-1 CrossRef Google Scholar
[16]	Chung Y, Dagli N. An assessment of finite difference beam propagation method[J]. IEEE J Quantum Elect, 1990, 26(8): 1335-1339. doi: 10.1109/3.59679 CrossRef Google Scholar
[17]	张骁, 刘文广. 基于亥姆霍兹方程的有源非稳腔模式计算方法[J]. 光电技术应用, 2011, 26(3): 1-3, 9. doi: 10.3969/j.issn.1673-1255.2011.03.001 CrossRef Google Scholar Zhang X, Liu W G. Mode calculation method for active unstable resonator based on Helmholtz Equation[J]. Elect-Opt Tech Appl, 2011, 26(3): 1-3, 9. doi: 10.3969/j.issn.1673-1255.2011.03.001 CrossRef Google Scholar
[18]	冯国英, 周寿桓. 激光光束质量综合评价的探讨[J]. 中国激光, 2009, 36(7): 1643-1653. Google Scholar Feng G Y, Zhou S H. Discussion of comprehensive evaluation on laser beam quality[J]. Chinese J Lasers, 2009, 36(7): 1643-1653. Google Scholar

Overview

Overview

Overview: The liquid crystal optical phased array (LCOPA) is the core device of next-generation beam control technology. For beam deflection control, it has the advantages of high precision, fast response, low threshold voltage, small size, etc. Increasing its laser-induced damage threshold is one of the current research hot spots. Temperature distribution will be formed on the surface of the device, due to the absorption of the device when a high-power laser is illuminated. Since the liquid crystal is a temperature-sensitive optoelectronic material, its phase modulation to incident light will deteriorate due to temperature rise. To investigate the performance of LCOPA under high-power laser incidence, the relationship between temperature and phase modulation must be established. Aiming at the scene of high-power laser incidence, the degradation degree of LCOPA phase modulation performance should be evaluated. The traditional method is to calculate directly through theory, but the accurate liquid crystal characteristic parameters must be known first, and for unknown liquid crystals, this method is difficult. Based on the traditional quarter-wave plate method, this paper realizes fast and direct measurement of the phase modulation distribution of high-power incident light with a LCOPA, and then the temperature-voltage-phase correspondence of the liquid crystal is established.

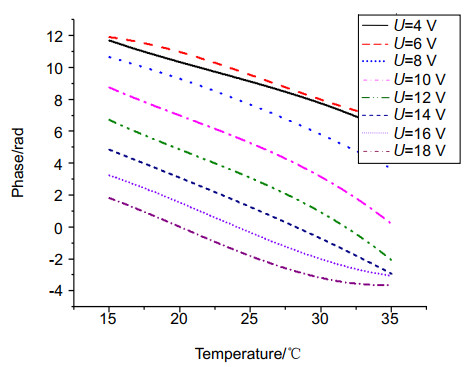

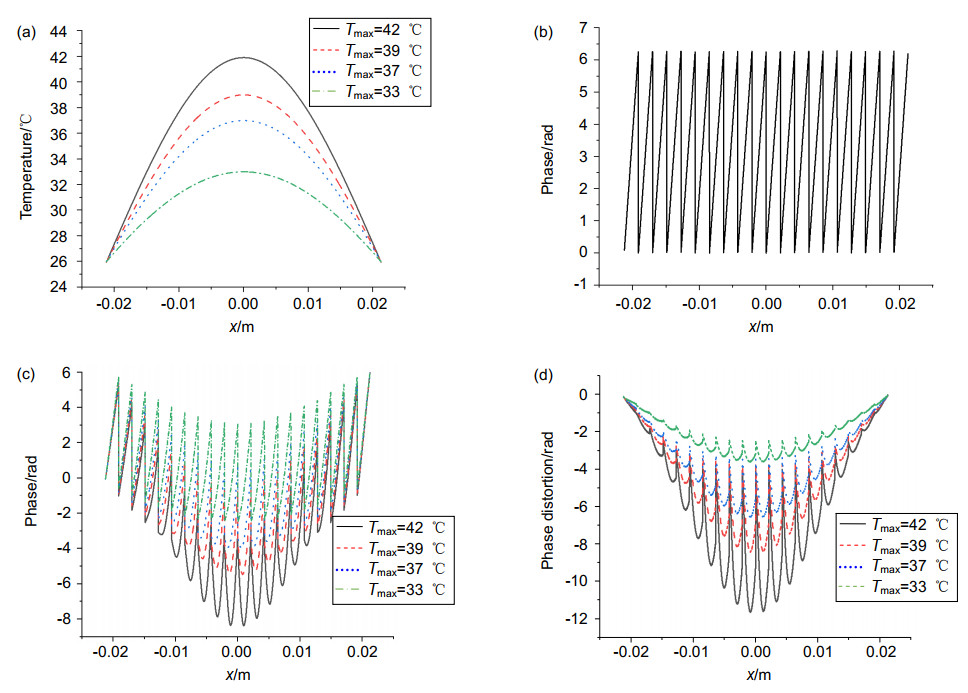

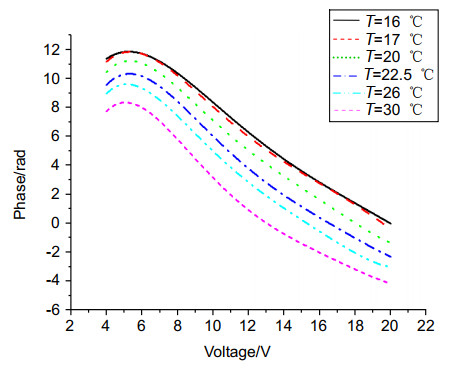

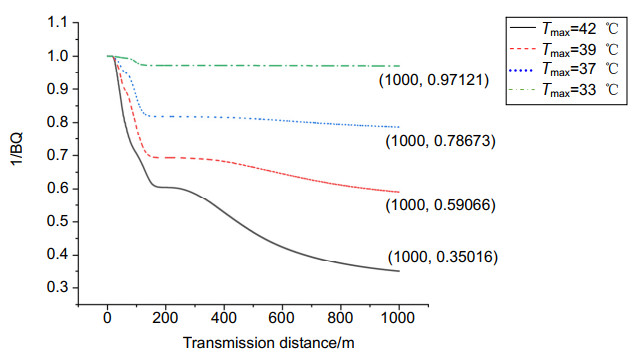

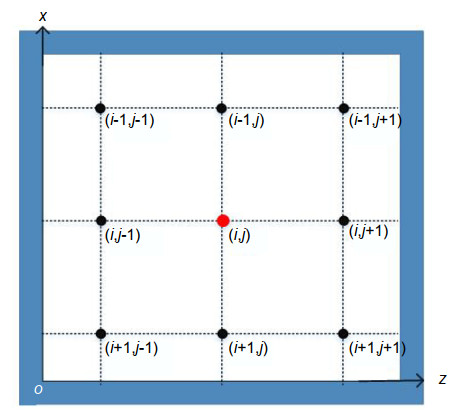

The LCOPA is loaded with a specific periodic voltage value to make the ideal deflection angle of 0.5 mrad. At the same time, 4 kinds of one-dimensional Gaussian temperature distributions with different core temperatures (42 ℃, 39 ℃, 37 ℃, 33 ℃) are added to the device. The actual phase distribution of LCOPA can be obtained according to the above temperature-voltage-phase correspondence relationship. The result show that the phase distortion distribution under the influence of temperature has a Gaussian envelope related to the external temperature distribution, and there is also a sawtooth distribution related to the external voltage distribution on the Gaussian envelope. Meanwhile, the phase distortion reaches the maximum at the core temperature. Taking the center temperature of 33 ℃ as an example, the corresponding maximum distortion phase amount is 3.6 rad. Then, based on the phase modulation results at the above four temperatures, starting from the Helmholtz equation and taking the efficiency ratio in the barrel as the criterion, the quality deterioration process of the beam within 1000 m from the device is studied. The MATLAB simulation results show that as the transmission distance increases, the beam quality of the emitted light slowly decreases and finally stabilizes. The deterioration of beam quality is less than 20% when the core temperature of the liquid crystal phase shifter changes less than 10 ℃.
